SINO ITALIAN | STD-424

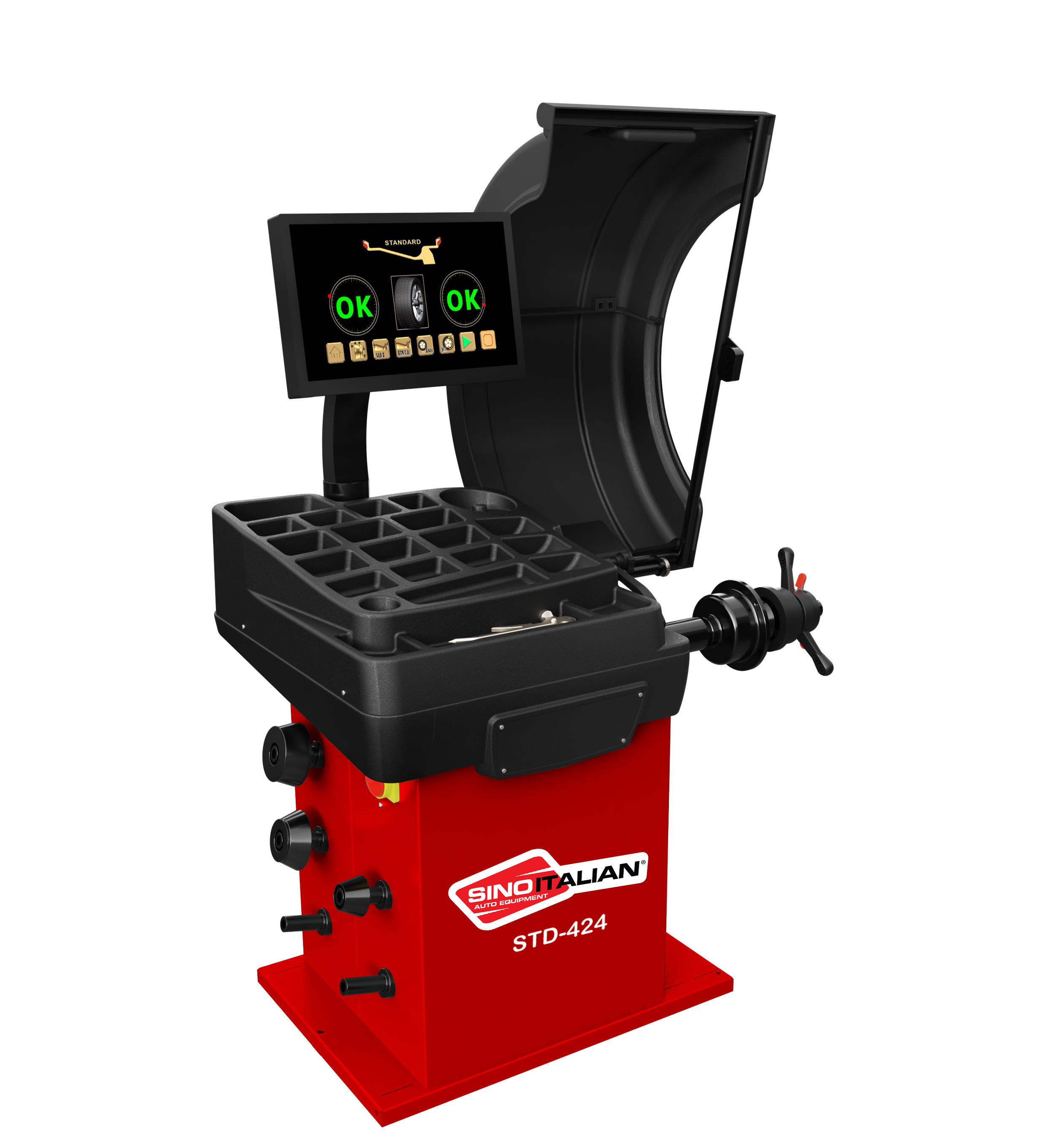

SINO ITALIAN STD424 WHEEL BALANCER

FEATURES

  • Touch-screen monitor with tempered glass
  • Automatic unbalanced point braking.
  • Auto select ALU-S balancing mode by pull the ruler
  • Sonar 3D gauge included as standard
  • Eliminating axis imbalance through software
  • 24V DC motor, driving measurement method
  • Emergency stop by raising wheel guard
  • Static and dynamic balancing modes
  • Wheel guard supplied as standard
  • Motorcycle balancing mode
  • Optional pneumatic automatic locking shaft.
  • Split function to hide weights behind spokes of rim
  • Rapid optimization (OPT)
  • Unit display in gram/ounce or mm/inch

SPECIFICATION VIEW

Max. Wheel weight Max. Wheel diameter Rim diameter


: 75kg

: 39 inches (1000mm)

: 12 inches - 34 inches (305  - 864mm)

Wheel width: 1.5 inches  -     20  inches (39 –  510mm)
Resolution : 0.7 degree
Balancing precision : ± 1 gram
Balancing speed : 120 rpm
Balancing cycle time : 9s
Power supply : 110V/230V/1PH

Motor power

G. weight

: 250w

: 185kg
