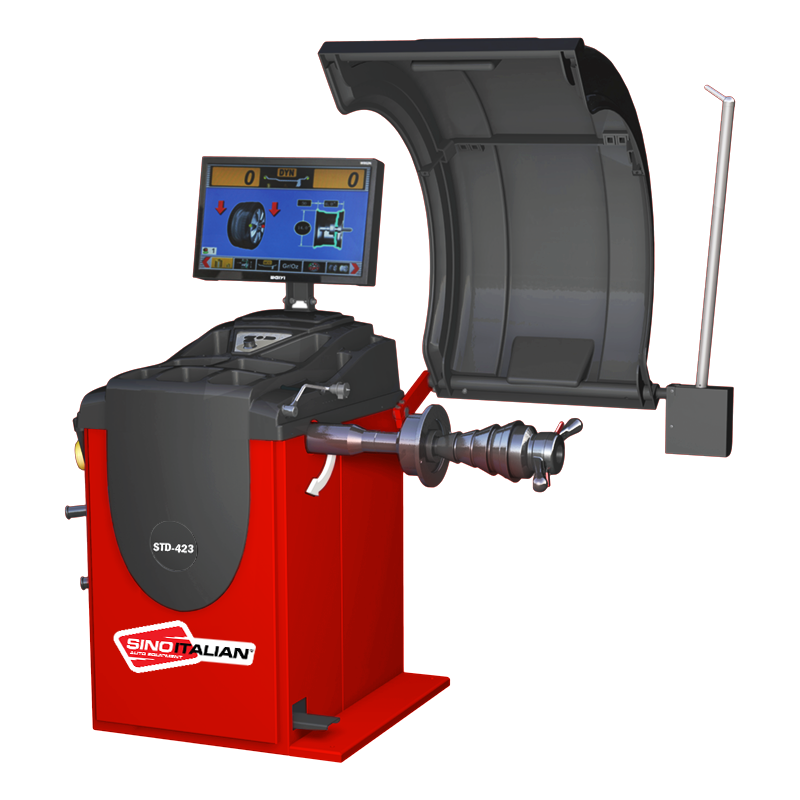

SINO ITALIAN | STD-423


FEATURES

  • Fully automatic 3D eect measurement method, automatic data input.
  • Computer brake, integrated computer board control.
  • Computer automatic measurement.
  • Multiple measurement modes.
  • The program software is independently developed and has independent intellectual property rights.
  • Stable repeatability and accurate secondary loading operation.
  • Imported SARV counterweight.
  • Imported pressure sensors and computer chips.
  • Foot brake, accurate lead placement.
  • Automatic start and stop function.
  • Wheel guards as standard.
  • The balance weight is adhesive and has the function of tracking the balance weight.
  • Adopt imported NTN bearing 256 points calculation method.
  • 12 -point laser line positioning and LED lighting functions.
  • Automatic / manual measurement mode.

SPECIFICATION VIEW

Maximum tire weight:75 kg

Tire diameter:1,000 mm

Tire width:1.5”-20“

Rim diameter:10”-32”

Measurement error:± 1g

Phase accuracy:256/1.4 degrees

Spindle speed:150 rpm

Voltage:110 V / 220 V - 1 PH

Equipment weight:180 kg
