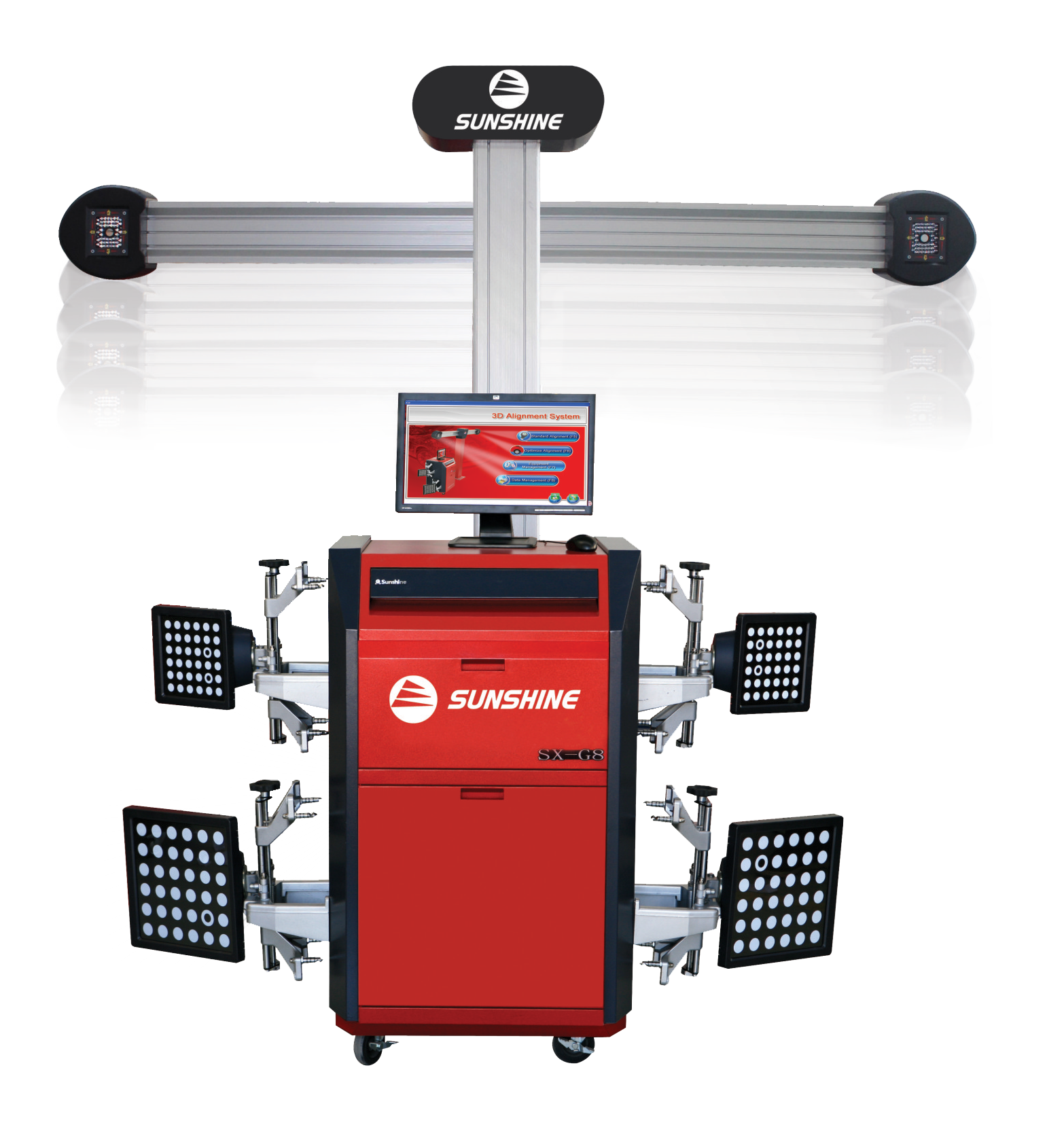

Axis Deviation & Wheel Deviation Measurement Function
Scrub Radius Measurement Function
Toe-In Lockup Measurement Function
Zero Toe-In Camber Measurement Function
Basic Function Parameters measurement such as Camber, Caster, Kingpin inclination, toe-in & toe-out, set back, thrust angle.
1. Inspection Of Height Level
Inspection Of Height Level Function.Following the equipment setup, calibration and diagnosis, and track inspection, the function for the alignment level (lift) inspection is set.

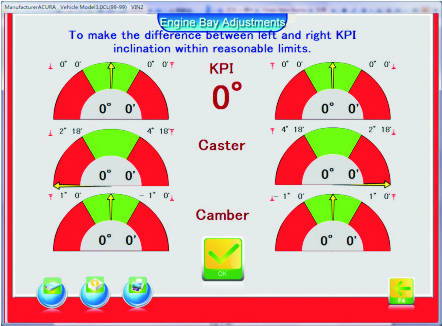

2. Engine Bracket Adjustment
To adjust Camber by moving engine bracket left and right. This function indicates engine bracket movement direction and shows King Pin Inclination value.
3. Steering Wheel Aligning mAlign and lock the steering wheel .

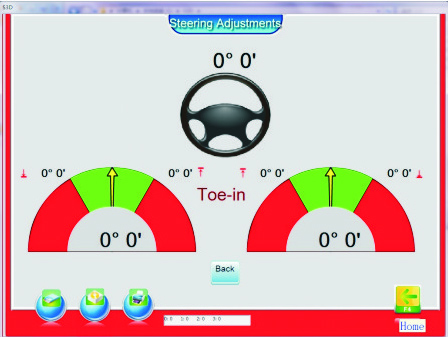

Steering wheel angle and Toe values of the right and left front wheels will display on the interface. Adjust Toe-in or Toe-out values within the space shown on the screen while keeping steering wheel angle value at 0.
4. Toe-In Curvature Measurement
Toe lockup values can be measured on vehicles with such function (as Audi A6 and passat B5). The tolerance of normal toe and suspension rise is 60mm.

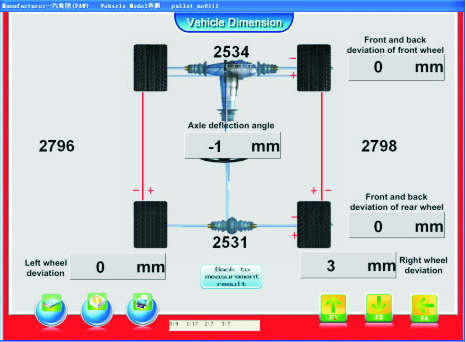

5. Axis Deviation & Wheel Deviation Measurement
This function shows the vehicle's deviation details for the same wheels axis. Please note: this wheel deviation is the distance of outer side of the wheel rims. But in fact, wheel deviation is the distance between the center line of two tires.

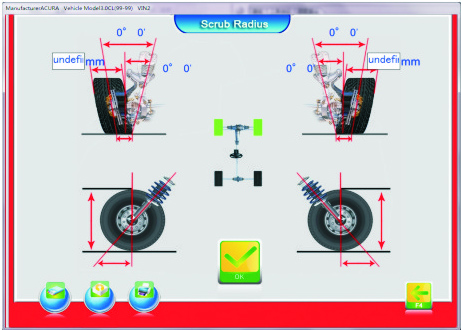

6. Scrub Radius Measurement
Accurately measures front wheel deviation and shows also the Wrap Angle, KPI and Camber value. Scrub Radius (also called Offset distance) is the distance between intersection of tire centerline and the ground and intersection of king pin extension line and ground. It is defined as "Positive Offset" distance, when the offset of the king pin extension is on the inner side of The intersection of tire centerline and ground, and "Negative Offset" distance vice versa.
7. Toe-In Lockup Measurement
It is easy to adjust Toe when steering wheel is at a limiting position. To easily make Toe adjustment, first lockup the Toe value then place steering wheel in the correct position.

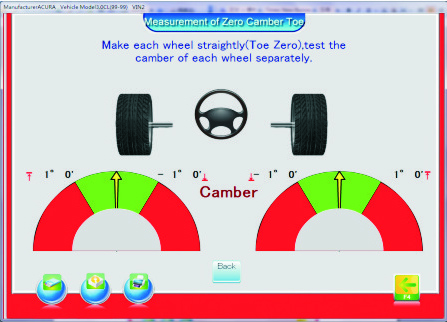

8. Zero Toe-In Camber Measurement
When Toe is set to zero, the Camber measurement value will be shown, this is suitable for vehicle with big KPI caster.

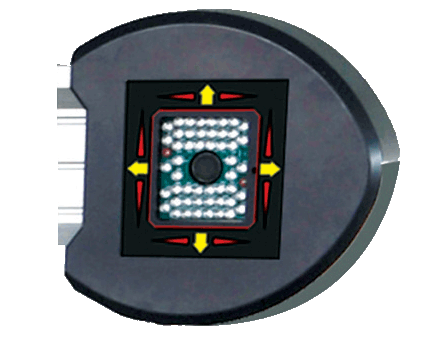

Intelligent indicative light
No need to see the computer screen in the process of vehicle pushing, indicative light around camera could guide the operation.

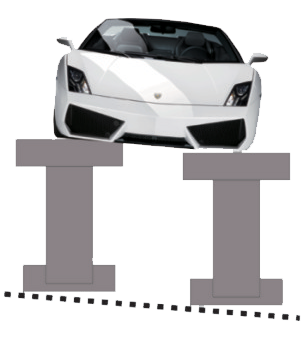

Platform adaptability
The body as a benchmark, not affected by the level of the lifting platform.
Vehicle pushing measurement
Vehicle pushing dynamic measurement without rim compensation, only 1.5minutes to read basic parameters
Data update
Car models data upgrade in Every April, customers can download the updated data free in the company network
