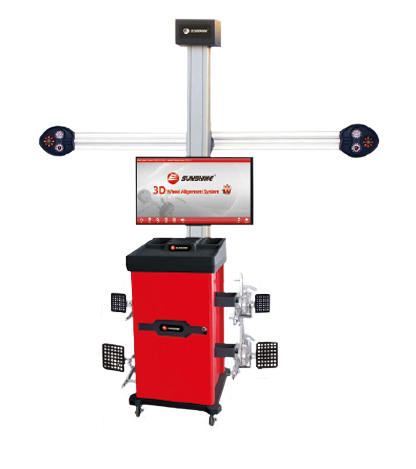

SUNSHINE | S-F8 3D WHEEL ALIGNER

SUNSHINE | S-F8 3D WHEEL ALIGNER

FEATURES

  • 1 camera beam assembly
  • 1 column assembly
  • 1 compact integrated cabinet  with roller
  • 1 of 32 inch LCD TV
  • 1 brand computer
  • 1 canon printer
  • 1 brake pedal lock depressor
  • 1 steering wheel holder
  • 2 wheel stoppers
  • 2 turning plates
  • 2 turning plates rubber pad
  • 4 sets of clamps with targets

    Advantages

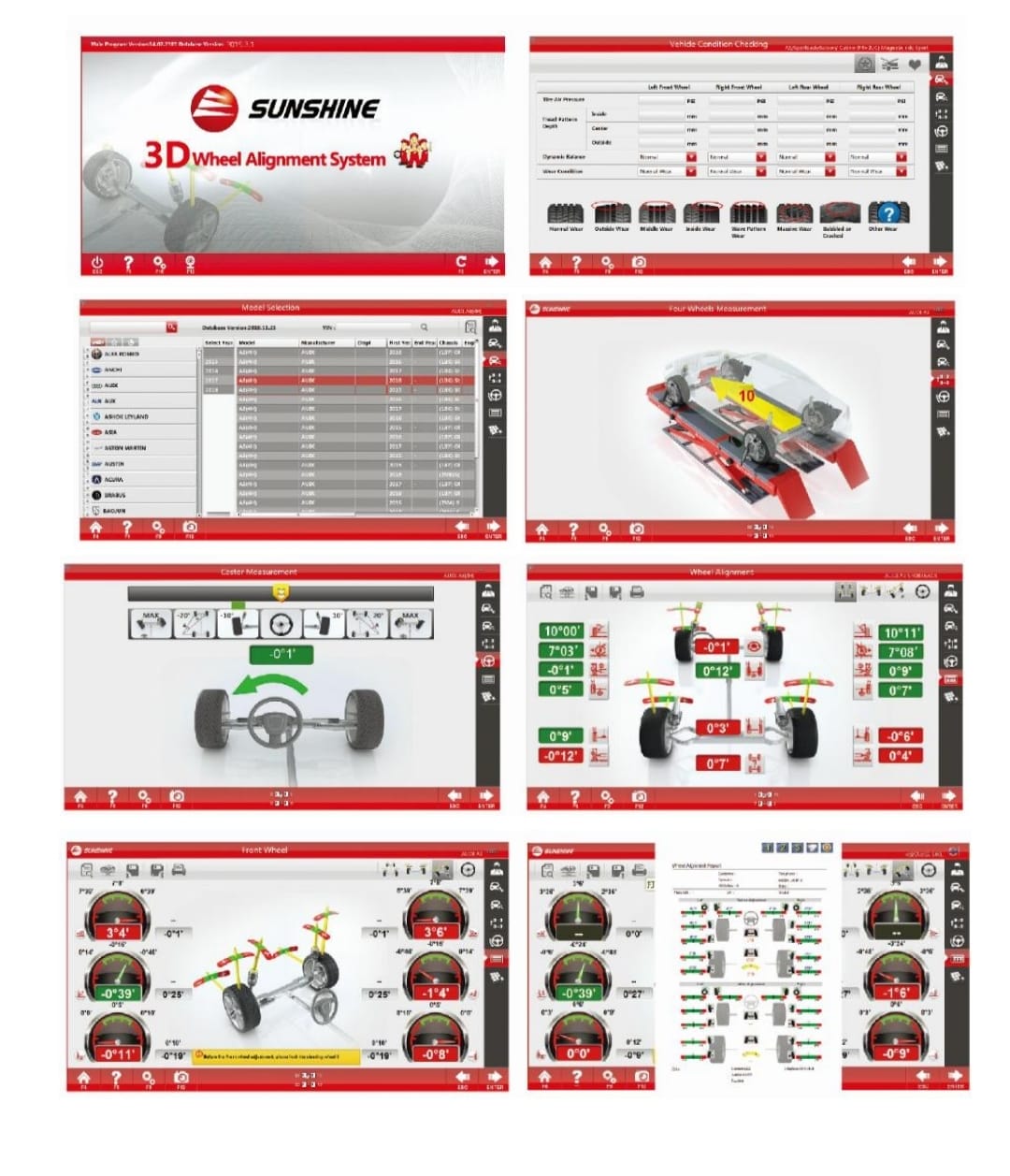

  • 6.0 Version Software Interface.
  • Car pushing dynamic compesation measurement
  • High accuracy. Mechanical precision is better than 4-point clamp measurement more accuracy
  • New-generation waterproof and oil-resistant target board

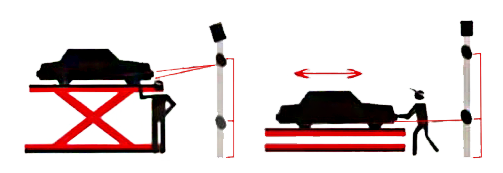

  • Automatic tracking cameras, the beam can move and adjust height according to the height of the target plates automatically

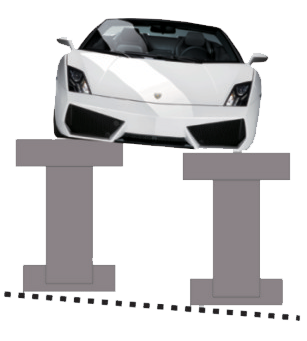

  • Platforms level difference can be around 5 mm, the alignment result will not be affected

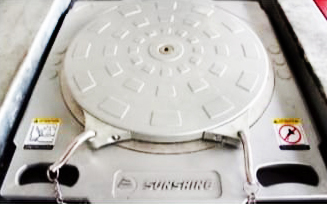

  • Magnesium aluminium alloy turning plates passed with 5T load testing, very strong and high quality
  • Camera high accuracy,more stable and reliable can be used longer than 10 years.

SPECIFICATION VIEW

  • Steering Wheel Aligning
    Body Measurement
    Vehicle Lift Measurement
    Engine Bracket Adjustment
    Toe-In Lockup Measurement
    Toe-In Curvature Measurement
    Single Wheel Measurement
    Inspection of Height Level
    Axis Deviation Measurement
    Wheel Deviation Measurement
    Zero Toe-in Camber Measurement

Measurement itemDisplay accuracy Camber Caster Kingpin  Inclination Toe-in & Toe-out Set back Thrust angle Wheel Deviation Axis Deviation
Accuracy 0.01° /0.1mm±2' ±6'  ±6'±2'±2'±2'±2mm±2mm
Measurement range 0.01° /0.1mm+10°  +20°±23°±20°±5° ±5°
