Technical Data :
- Locking Range : 360mm(14”)~1,430m(56”)
- Maximum Wheel Weight : 1,500kg
- Maximum Wheel Diameter : 2,300 mm
- Maximum Wheel Width : 1,065 mm
- Hydraulic Pump Motor : 1.1 Kw 380V 3PH
- Driving Motor : 1.2~1.8Kw 380V 3ph
- Working Pressure : 0 - 130bar
- Dismounting Tyre Force : 2,690 kg
- Noise : <70dBa
- Weight : 770 kg
FEATURES
Feature :
• Two speed hydraulic chuck, with 5 different rim locking points
• Movable control unit

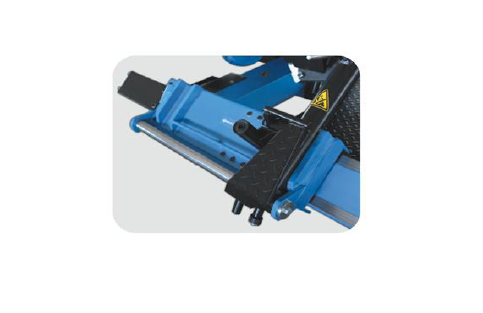

• Hand movable tool holder
SPECIFICATION VIEW
