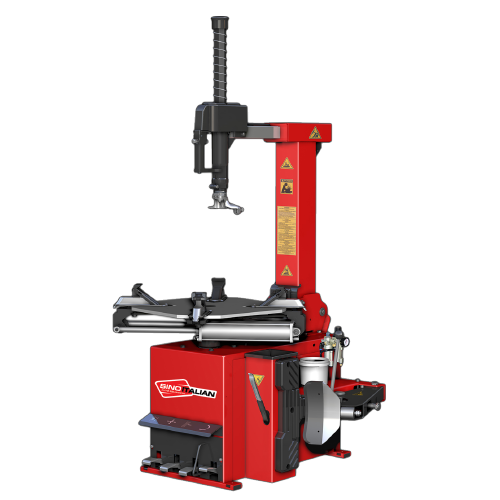

Technical Data :

- External clamping : 10" - 22"

- Internal clamping : 12" - 24"

- Max. wheel diameter : 1,000 mm (39")

- Max. wheel width : 340 mm (13")

- Bead-breaker cylinder force : 2,500 kg [ at 10 bar ]

- Operating pressure : 10 Bar (140 psi)

- Max. spindle torque : 1,200 Nm

- Max. inflating pressure : 3.5 bar (50 psi)

- Packing dimension : 970 (L) x 760 (W) x 940 (H) mm

- Gross weight : 233 kg
