Since 2001, the year our “Leva la leva” technology was introduced, many hurried to chase after us, Presenting their own solutions. They called their solutions "no lever", or "leverless", or the "automatic lever system". The truth is however that no one has been able to copy the patented “Leva la leva” system with the “SMART Corghi System” device, the only existing solution that:

• NEVER TOUCHES THE RIM, during any working phase
• annuls all tension on the tyre during the tyre demounting/mounting phases.

This is the difference between Corghi and the others.

Artiglio Master Jolly has this technology at its core and offers it in a price range that has been impossible until now. A perfect synthesis between tested constructive quality, unique technological solutions and a Competitive price represents the ideal machine and a perfect balance for an investment that since 2001 has guaranteed our customers a technological advantage that has remained unmatched over time.

NOT ALL LEVA LA LEVA SOLUTIONS ARE EQUAL! And we are well aware of this.

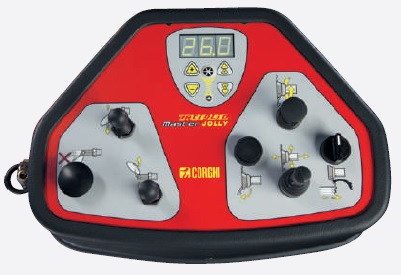

CONSOLES

Ergonomic and multifunctional consoles with a display that makes it possible to electronically set the rim diameter and obtain the positioning of the work tools in a quick, practical and safe manner. Divided into three distinct work areas, it makes it easier to immediately recognize movements and makes the system easier to use for the operator.

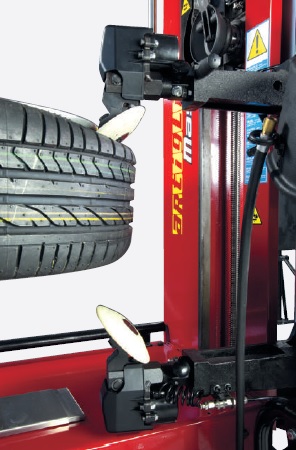

DYNAMIC BEAD BREAKING DEVICE WITH CONTROLLED PENETRATION

• Dynamic bead breaking device with dual specular bead breaker disc. The radial positioning of the discs is made easier by an automatism that is able to prevent any manual positioning by the operator.

• Controlled penetration (Patent Pending) Precision, rapidity and repeatability are guaranteed by the patented bead breaking system and by the perfectly synchronized and symmetrical motions of the two discs.

RAPID BOTTOM BEAD DEMOUNTING PROCEDURE

Rapid demounting procedure with bead breaker disc (particularly useful with stiff sidewalls)

CLAMPING - Safe and universal wheel clamping

The axial mounting turntable ensures rapid clamping while permitting bead breaking on both sides without having to turn the wheel itself. The constant working height (reverse rims excluded) has been optimised for ideal operator ergonomics with all wheel types.

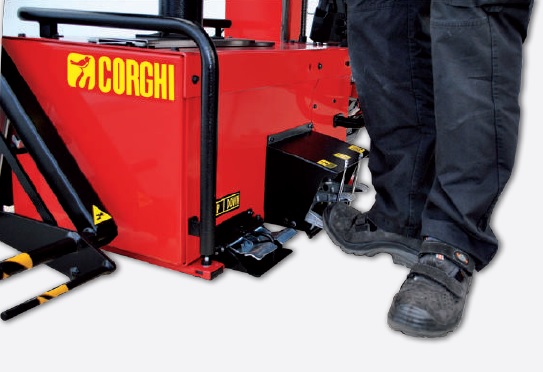

“AUTOMATIC” VERSION WITH PNEUMATIC WHEEL CLAMPING

New, even quicker and more universal wheel clamping system

In the “AUTOMATIC” version is a third pedal.  Pressed to release the system which locks the turntable centring handle.  In its rest position, the system which clamps the turntable centring handle is normally active.  The pedal is used during positioning and clamping of the wheel on the turntable, and to release the wheel when the job is done.

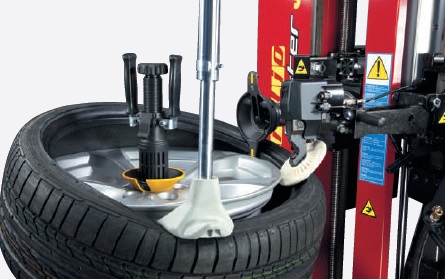

BEAD DEPRESSOR

• Bead depressor with adjustable working height
• Depressor shape ideal for RFT tyres
• Standard in all versions

ERGONOMICS - Fixed work position
Pedals, consoles and wheel loading on the same side.  Constant working height for perfectly ergonomic movements.

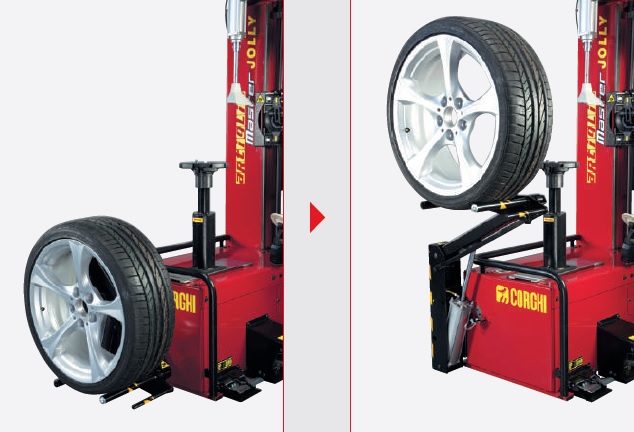

WHEEL LIFTER -optional accessory

A wheel lifter for effortlessly placing wheels of any type onto the turntable.
