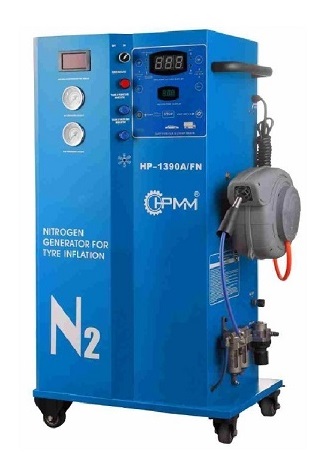

HPMM | HP-1390A/FN

The largest line of nitrogen generators so there’s sure to be a model that suits your situation.

Our Pressure Swing Adsorption (PSA) systems are becoming the standard for both automotive and fleet applications.


· Equipped with fully automatic hose-reel, one pipe finish all functions.
· Equipped with fully automatic water/oil vapor separator, it can drain the water out automatically.


Display LED
Suit for Car & Light truck
Power 220V ± 10%, 50/60Hz
Nitrogen purity 95~99%
Air inlet pressure 9~10 bar, 130~145 psi
Air compressor required 5.50~7.5kW, 10 bar, 1~1.5m3/min
Nitrogen output pressure 1~6 bar, 15~87 psi
Output capacity 60~80L/min, 15.8~21 gallon/min
N2 Tank capacity 50L / 13.2 gallon inside
Standard Automatic hose~reel (9.5m)
Dimension (mm) 620*445*1,145/320*275*175
N.W / G.W 107/110.5 kgs
