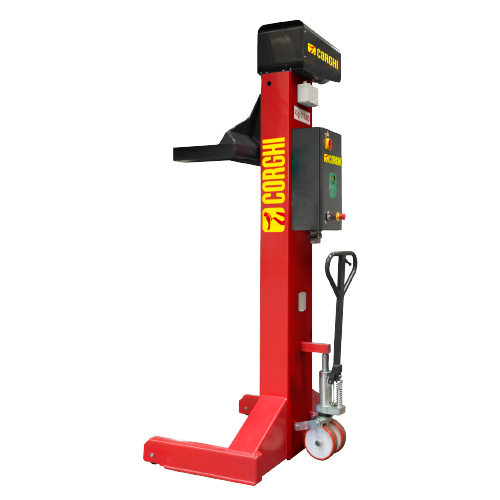

CORGHI | ERCO-LE 75

The lifters are available with lifting capacity up to 7500 kg. per column. The design criteria meet the demands of the modern do-it-yourself repairer, without trading off attention to details

FEATURES


LIFTERS WITH ELECTROMECHANICAL MOBILE COLUMNS WITH NEW COMPUTERISED CONTROL UNIT

CHARACTERISTICS

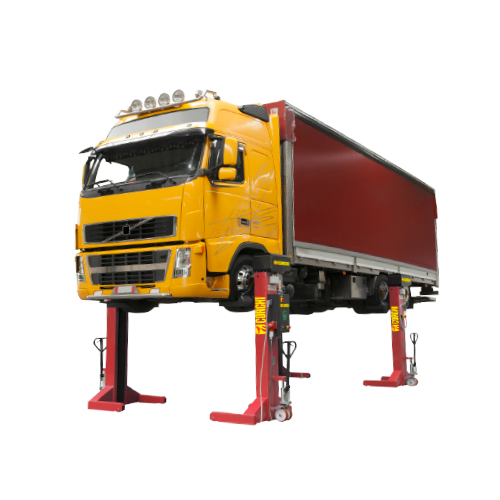

w 4-6-8 column set configurations, with load capacities of 7.5 / 5.5 tones per column.
w May be activated from all the columns.
w Automatic realignment between columns within a few millimeters of unevenness.

OPERATING METHODS
w Simultaneous function of all the columns.
w Function of couples of columns.
w Single column function.
w Function with couples of columns starting offset.

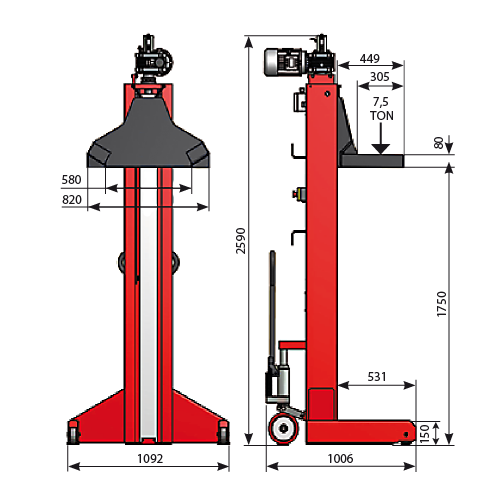

SPECIFICATION VIEW


Capacity per column7.5t
Rate of climb670 mm/min
Weight per column410 kg
Motor power per column3 kW (optional 2 x 4.0 kW)
Power supply400V 50-60 Hz
ØMIN/MAX Tyre Ø 900/1200 mm
Helm of hydraulic operationü
