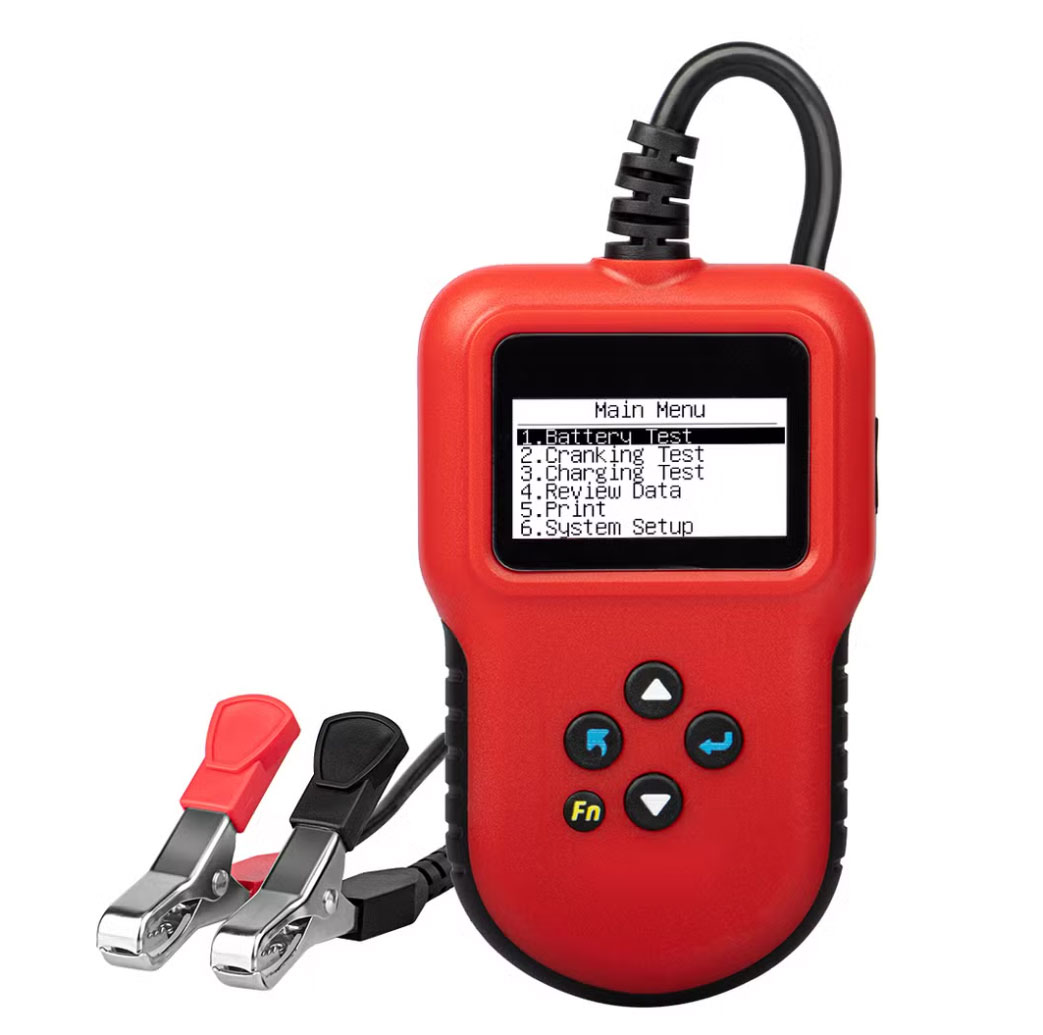

LEAGEND | BA106

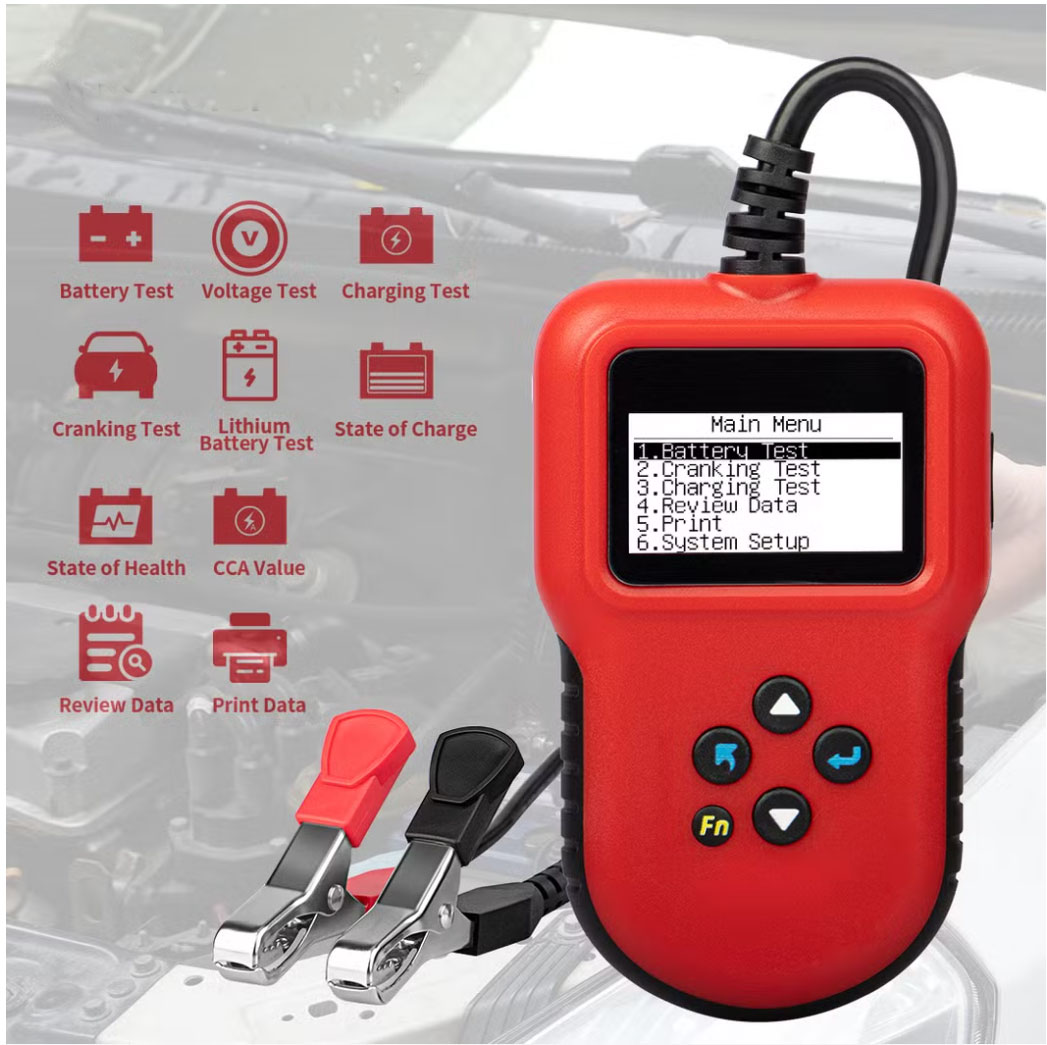

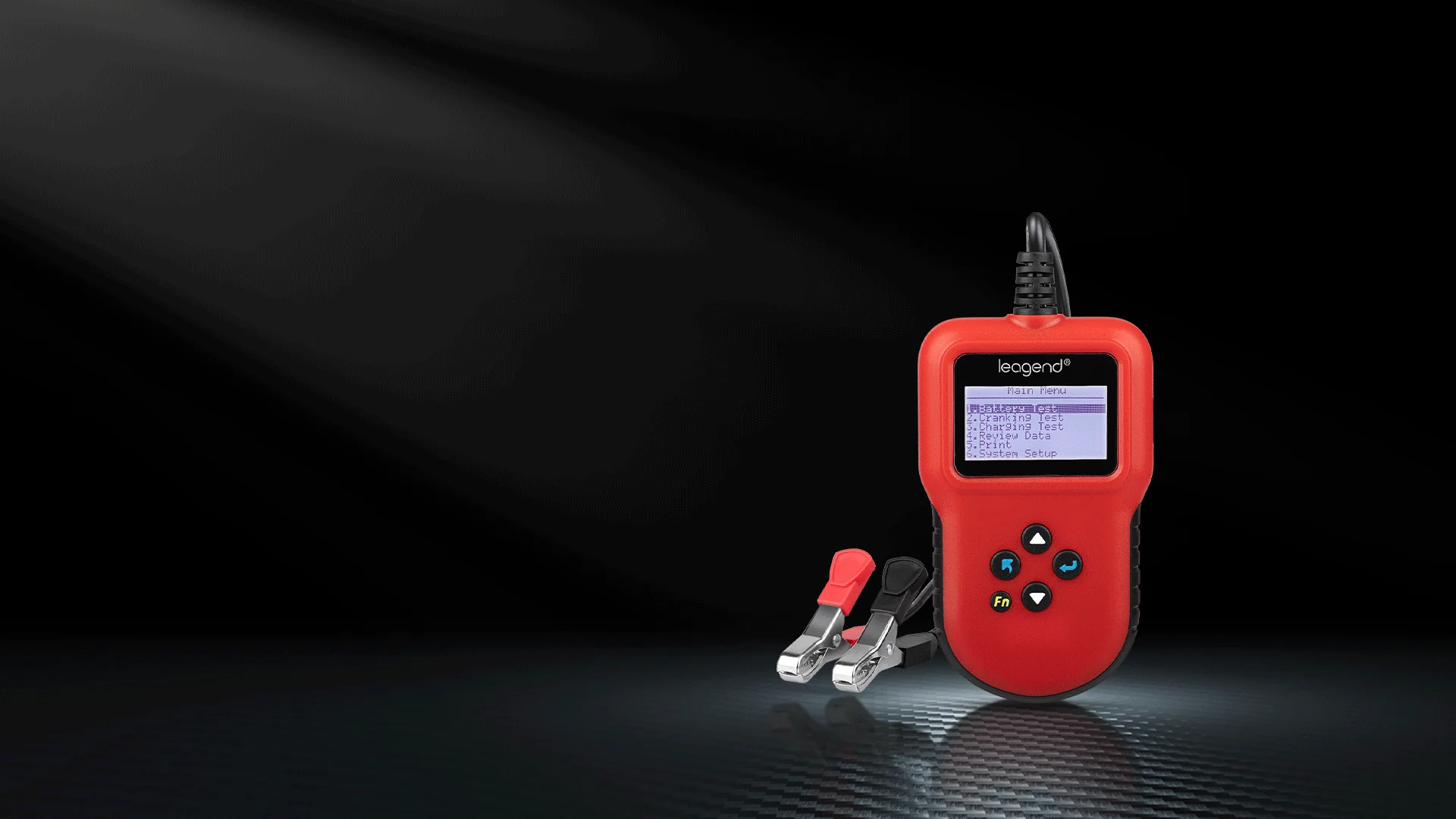

Leagend BA106 is an advanced diagnostic tool designed for both 12V lead-acid and LiFePO4 engine starting batteries. It offers detailed testing of key parameters such as CCA (cold cranking amps), internal resistance, voltage, state of charge (SoC), and state of health. The tester also evaluates the 12V starting and charging systems to ensure optimal vehicle performance.

FEATURES



VERSATILE BATTERY TESTER


- Test 12V lead-acid battery and LiFePO4 engine starting battery;

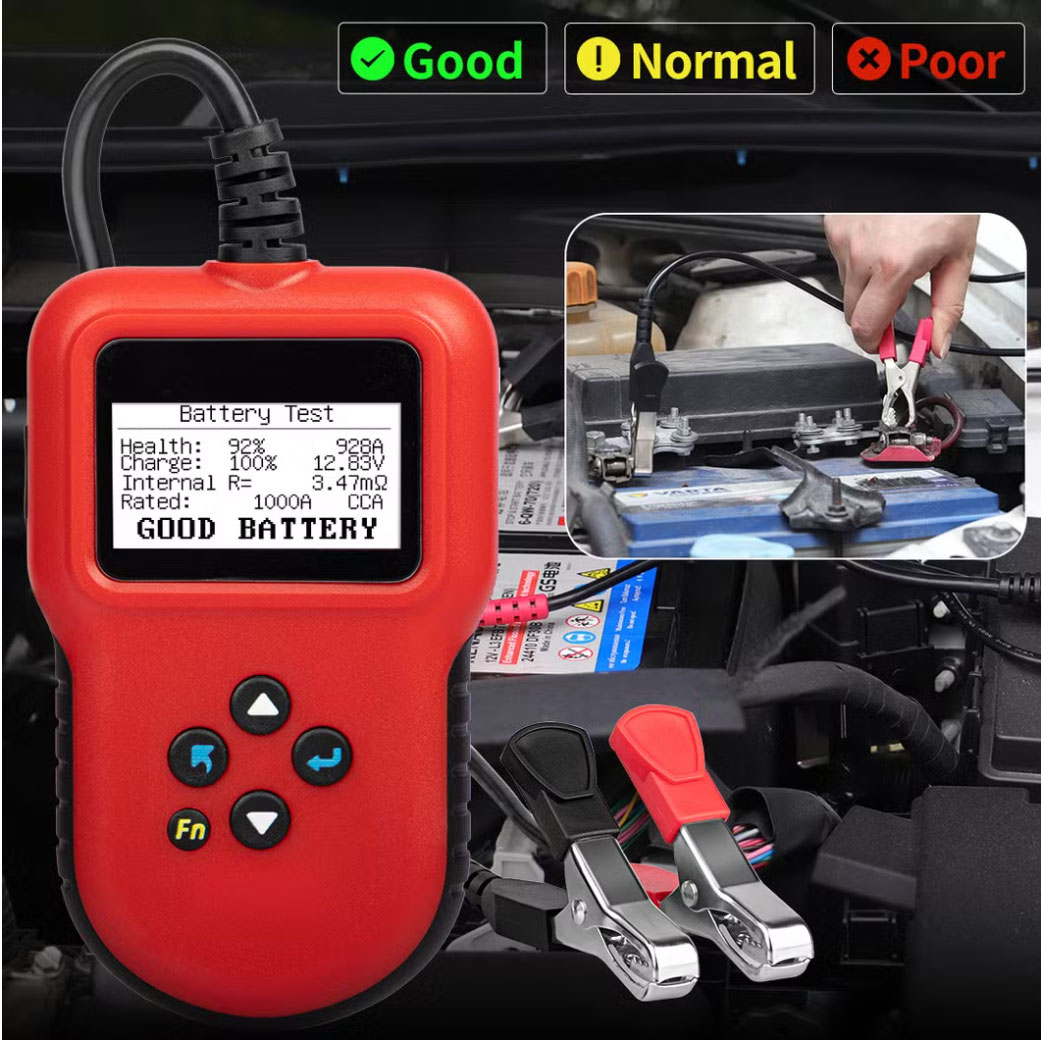

- Test the CCA (cold cranking amps)/internal resistance/voltage/state of charge (SoC)/state of health (SoH);


- Test the 12V starting system and charging system;


UNIQUE CUSTOM FAST KEY

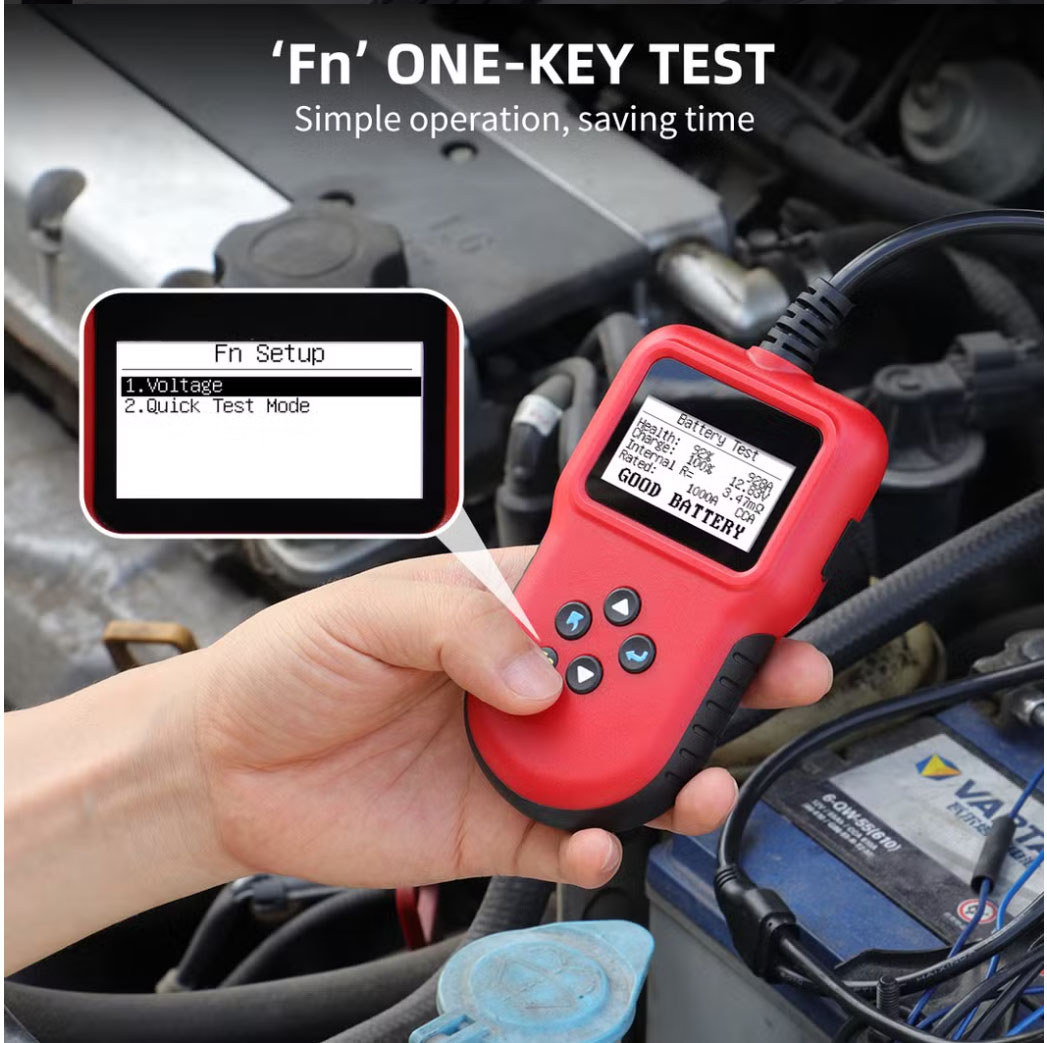

Unique custom fast key Fn: we can set one-button test or one-button voltmeter mode.

Automatical features

- Automatically save the last test result for review;

- Automatic temperature compensation;

PRINT THE TEST RESULTS

Print test results by connecting to a computer.

BUILT-IN PROTECTION SYSTEM

Built-in protection for short circuit and reverse connection;




SPECIFICATION VIEW


Language
English, French, German, Spanish, Italian, Dutch
Application

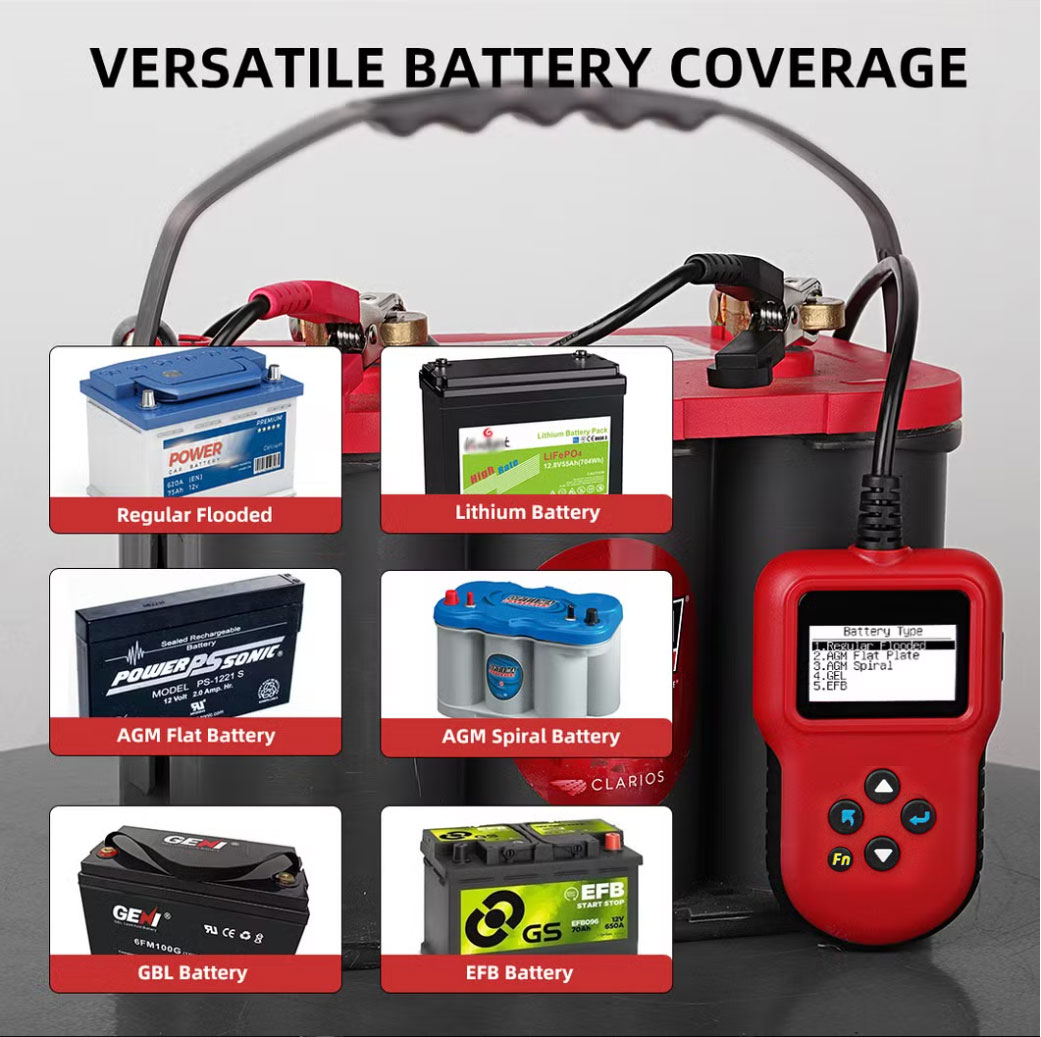

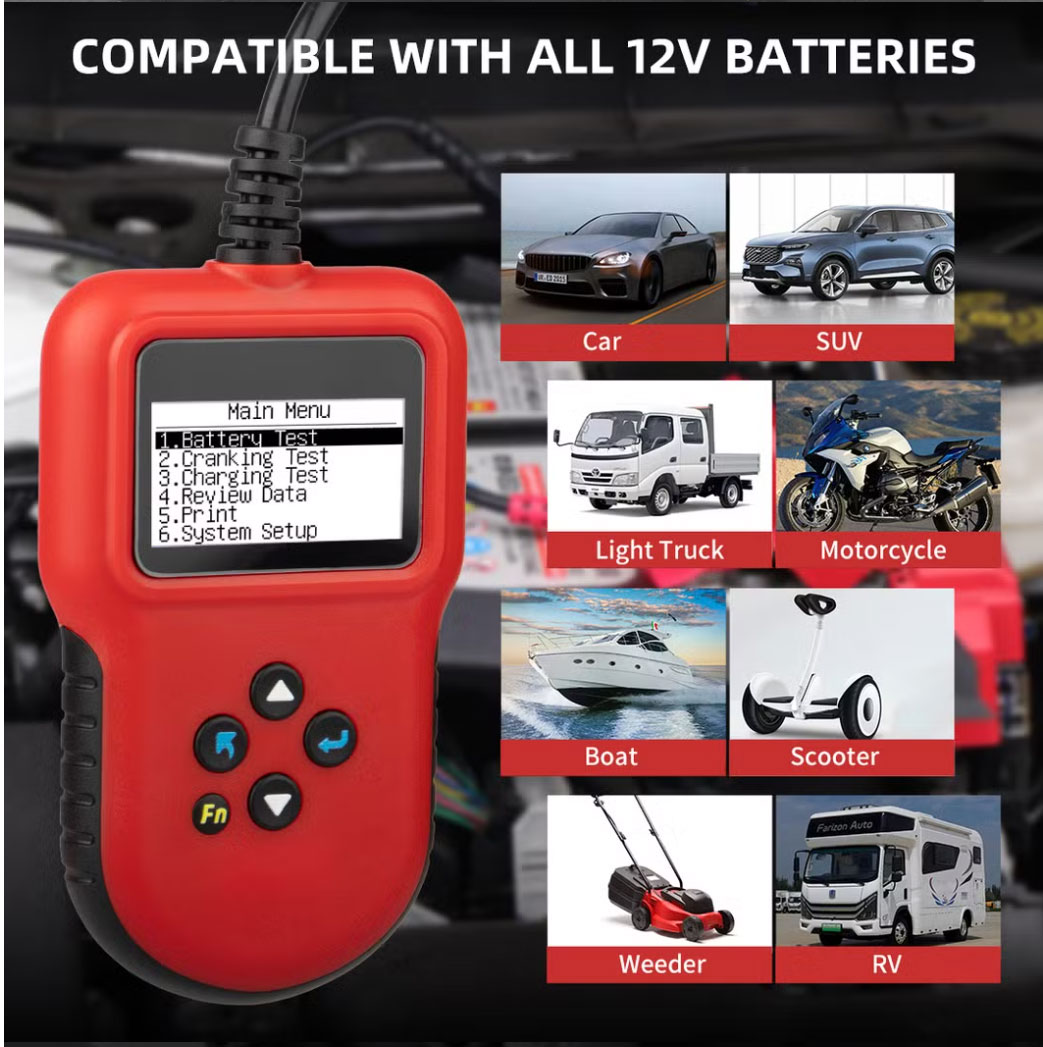

All 12V lead-acid battery and LiFePO4 engine starting batteries

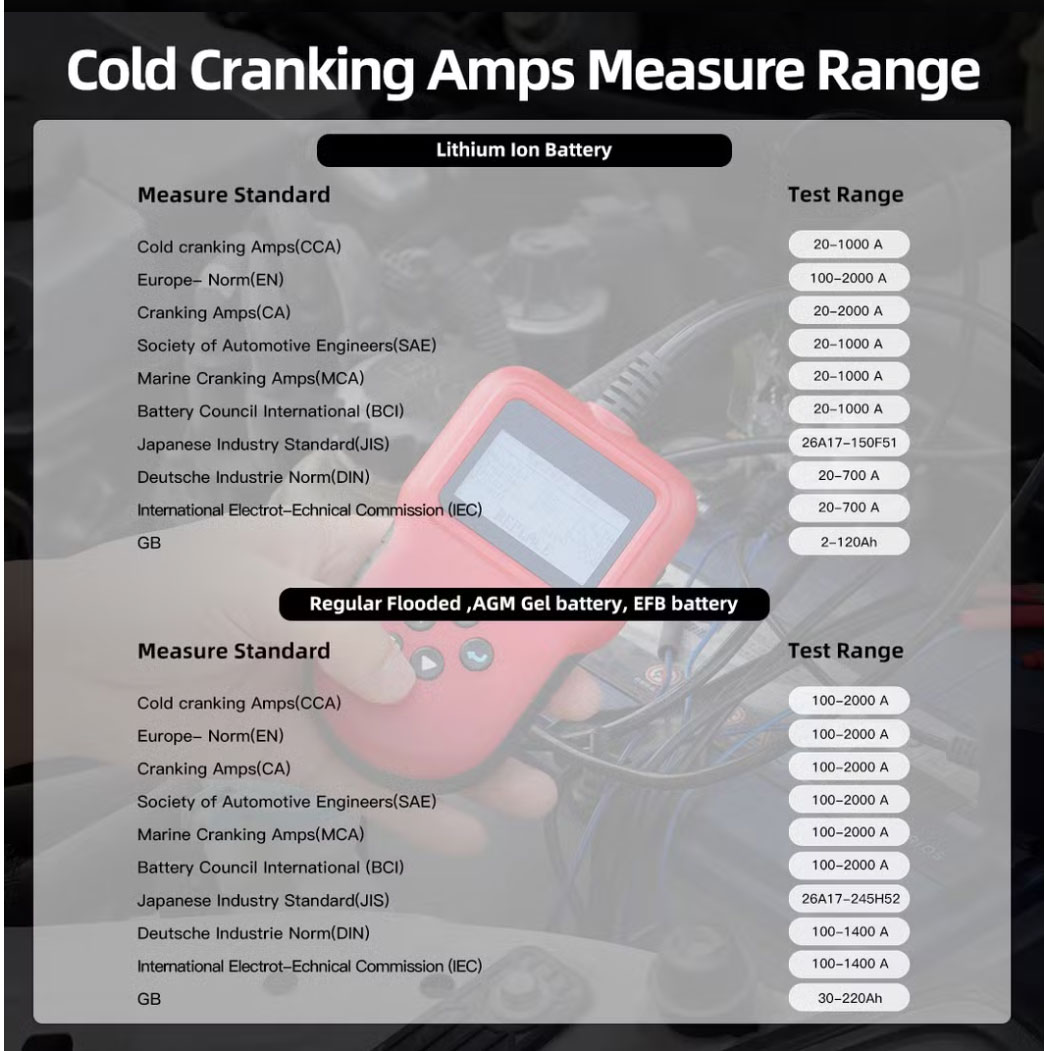

Test Standard and Range
Lead-acid batteries: JIS(26A17-245H528) CCA/BCI/CA/MCA/EN/SAE(100-2000) DIN/IEC(100-1400) GB(30-220Ah); LiFePO4 batteries: JIS(26A17-150F51) CCA/BCI/CA/MCA/EN/SAE(20-1000) DIN/IEC(20-700) GB(20-120Ah)
Input Voltage
8V~30V
Operating Temperature
-10°C~60°C (14°F~140°F)
Storage Temperature
-20°C~70°C (-4°F~158°F)
