FEATURES


Battery & Electrical System Tester

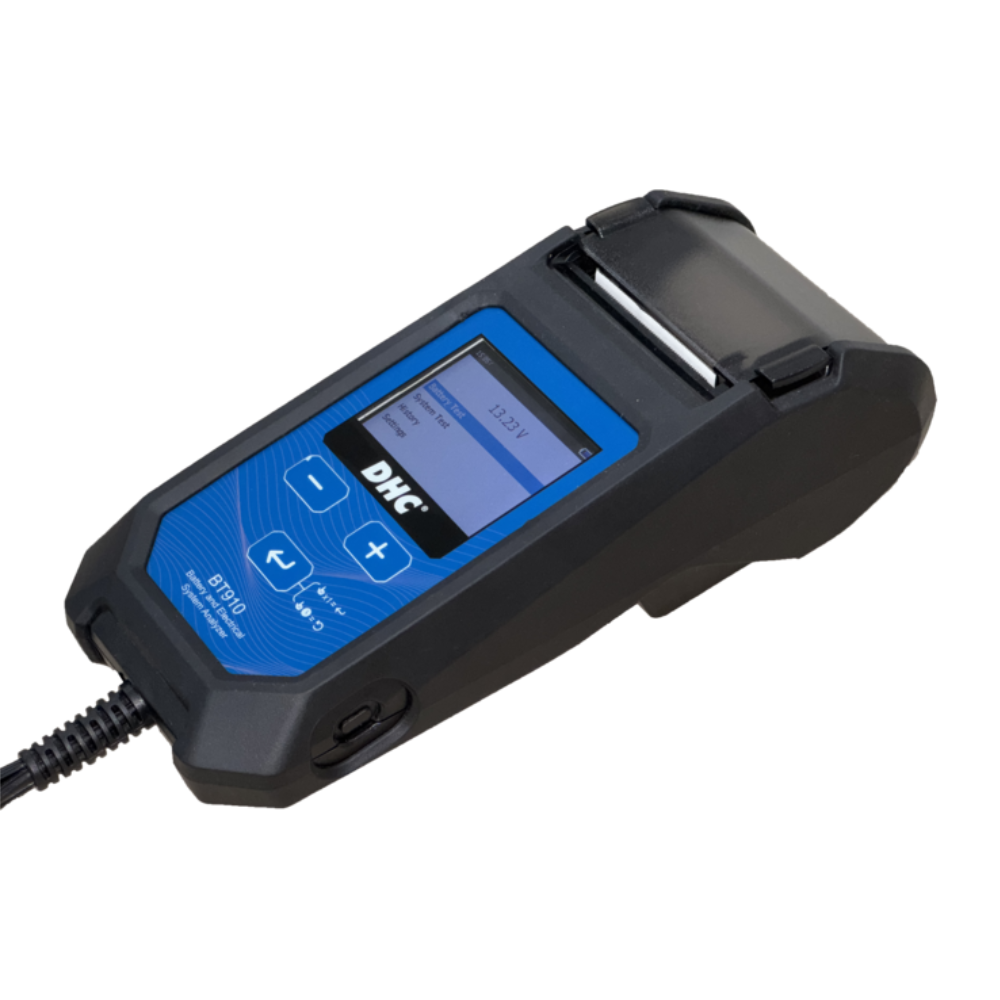

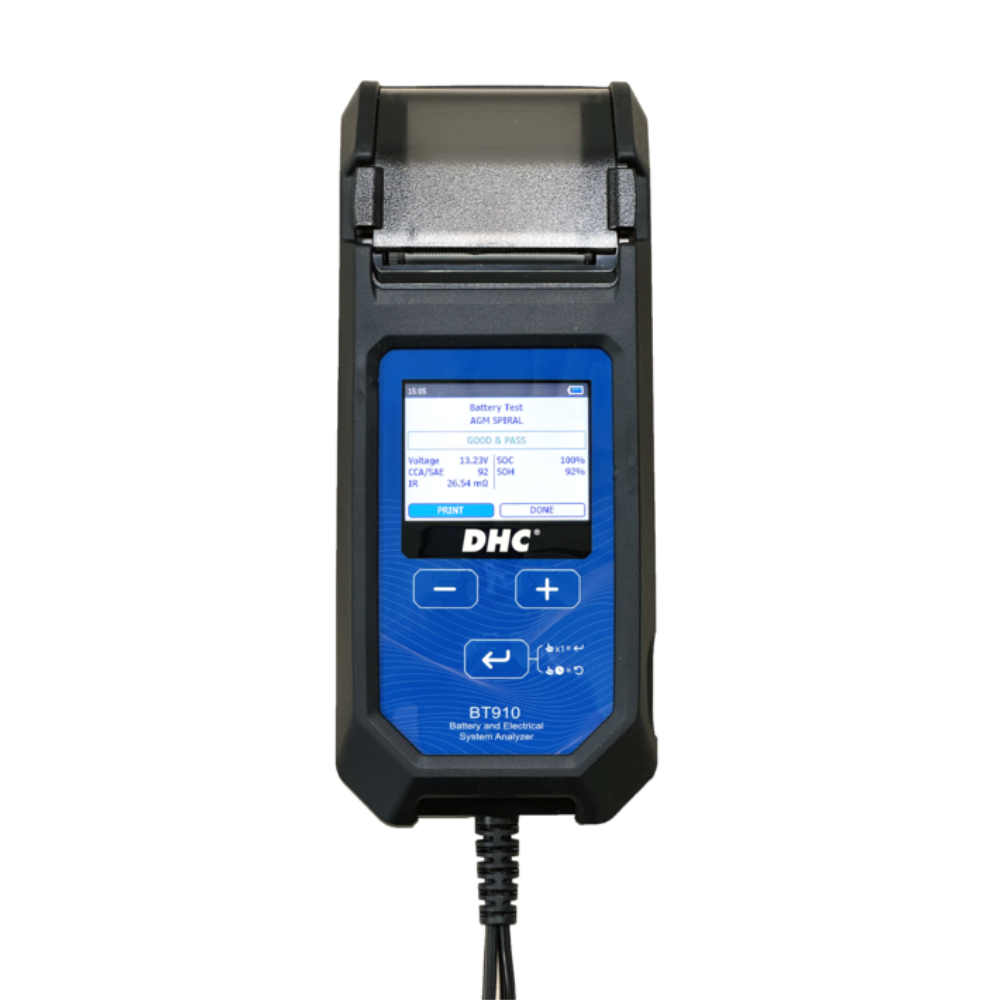

BT910 from DHC is a hand-held battery and electrical system tester with PC software and in-field firmware update support.

Accurate, fast, and easy to use, it is a excellent choice for small garages and service centers.
It has coloured TFT-LCD display and a improved user interface, for higher information density and better legibility under sunlight.

Highlights:

  • Get Result in Seconds

    Accurate battery condition can usually be aquired in under 60 seconds, including boot-up and entering test parameters.

  • Straight Forward User Interface

    Coloured TFT-LCD display
    Simple operation logic
    Clear and friendly interface

  • In-Field Update

    Update firmware in-field via PC Software

  • Companion PC Software

    Test result dowanload
    Test result management
    Test result export
    Firmware update


SPECIFICATION VIEW

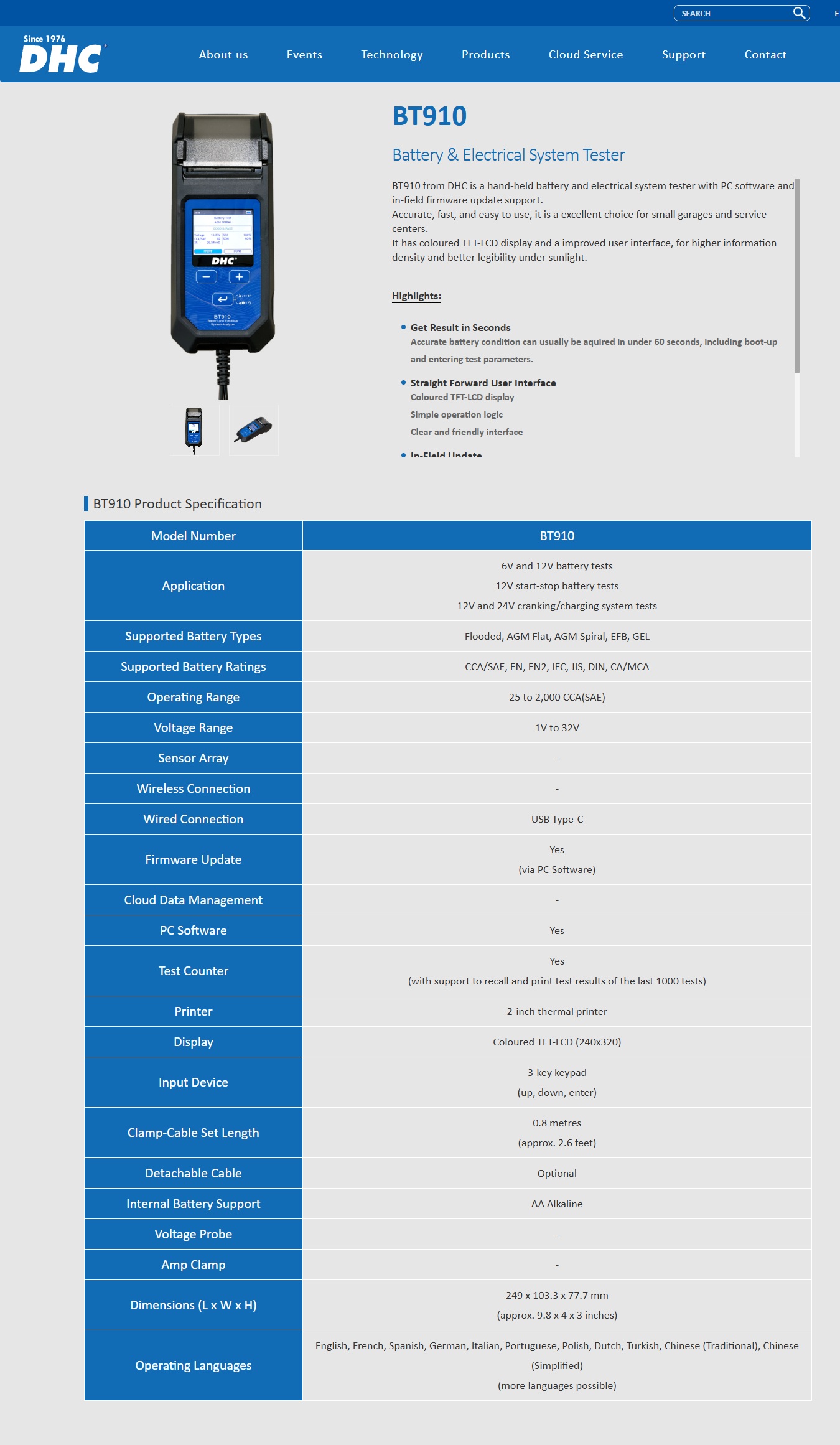

BT910 Product Specification

Model NumberBT910
Application6V and 12V battery tests
12V start-stop battery tests
12V and 24V cranking/charging system tests
Supported Battery TypesFlooded, AGM Flat, AGM Spiral, EFB, GEL
Supported Battery RatingsCCA/SAE, EN, EN2, IEC, JIS, DIN, CA/MCA
Operating Range25 to 2,000 CCA(SAE)
Voltage Range1V to 32V
Sensor Array-
Wireless Connection-
Wired ConnectionUSB Type-C
Firmware UpdateYes
(via PC Software)
Cloud Data Management-
PC SoftwareYes
Test CounterYes
(with support to recall and print test results of the last 1000 tests)
Printer2-inch thermal printer
DisplayColoured TFT-LCD (240x320)
Input Device3-key keypad
(up, down, enter)
Clamp-Cable Set Length0.8 metres
(approx. 2.6 feet)
Detachable CableOptional
Internal Battery SupportAA Alkaline
Voltage Probe-
Amp Clamp-
Dimensions (L x W x H)249 x 103.3 x 77.7 mm
(approx. 9.8 x 4 x 3 inches)
Operating LanguagesEnglish, French, Spanish, German, Italian, Portuguese, Polish, Dutch, Turkish, Chinese (Traditional), Chinese (Simplified)
(more languages possible)
