FEATURES

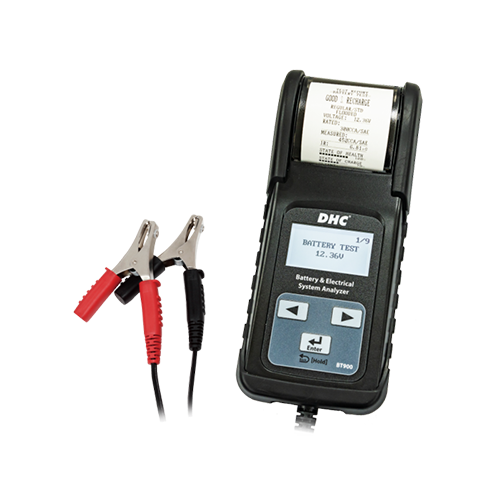

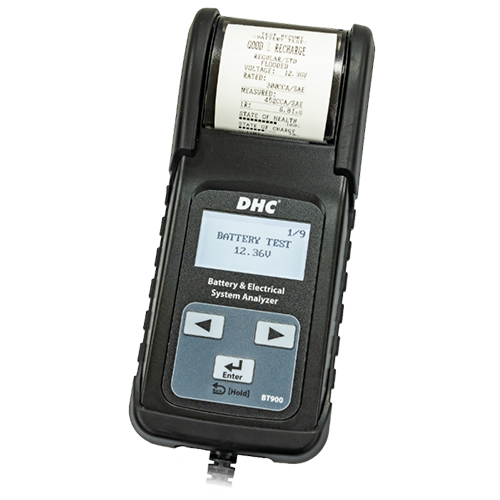

w Battery, Cranking, & Charging system tester
12V battery
test / 12V START-STOP battery test / 12V & 24V cranking/charging system test
/ IR test
w LCD with Adjustable Brightness
4-line LCD
with adjustable brightness.
w Built-in 2” Thermal Printer with Easy Load Design
Easily
replace the paper roll
w Start/Stop Battery Test Available
Performs
accurate test for Start/Stop batteries.
w In Vehicle Test
Combines
battery test & system test into a single task, providing a print out with a
complete test result.
w Temperature Compensation
Different
temperature compensation above/below 0ºC (32ºF).
w Date & Time Function
Built-in
battery keeps your date & time information
w DIY Information
Able to edit
the customized information on the print out receipt.
w Slim & Light Weight Design with Protective Boot
Light weight
design provides better mobility
w Print Last Result
Able to directly
print last test result without re-testing
w Backward Function Key
Selected
wrong setting? Hold the enter key and go back to the previous stage
SPECIFICATION VIEW
| Application | 12V
battery / 12V START-STOP battery test /12V
& 24V cranking/charging system test / IR test |
| LCD | 4-line
LCD with adjustable brightness |
| Printer | 2”
thermal printer |
| Supported Battery Types | Flooded,
VRLA/GEL, AGM Flat, AGM Spiral, EFB |
| Battery Ratings | CCA/SAE,
EN, JIS, DIN, IEC, CA/MCA |
| Operating Range | 40~2,000
CCA(SAE) |
| Voltage Range | 8V
~ 31.5V |
| Dimension | 250 (L) x 130(W) x 45(H) |
| Languages | English,
French, Spanish, German, Italian, Portuguese |
