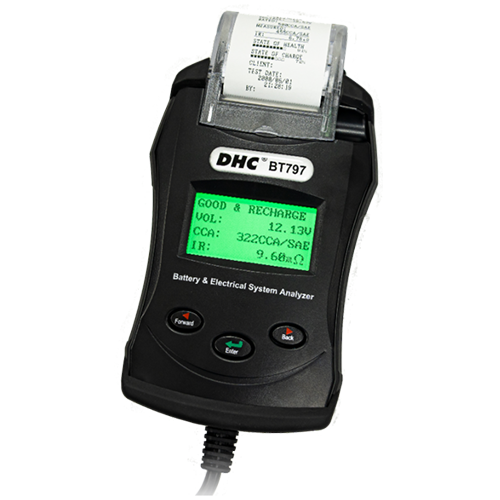

BT797 is a professional level battery and electrical system tester upgraded from its well-known predecessor BT747.Many new features such as the detachable clamp set, 4-color LCD, In-vehicle test have all been implemented into the BT797.
FEATURES
w Battery, Cranking, & Charging system tester
6V & 12V
battery / 12V START-STOP battery test / 12V & 24V cranking/charging system
test / IR test
w 4 Color LCD
Shows
different color for different test result.
w Built-in 2” Thermal Printer
Prints a
receipt of test result with date.
w Start/Stop Battery Test Available
Performs
accurate test for Start/Stop batteries.
w In Vehicle Test
Combines
battery test & system test into a single task, providing a print out with a
complete test result.
w Temperature Compensation
Different
temperature compensation above/below 0ºC (32ºF).
w DIY Information
Able to edit
the customized information on the printout receipt.
w Detachable Cable
Detachable
cable for easy replacement.
w Print Last Result
Able to
directly print last test result without re-testing
w Backward Function Key
Selected
wrong setting? Hold the enter key and go back to the previous stage
SPECIFICATION VIEW
| Application | 6V & 12V battery / 12V START-STOP battery test / 12V
& 24V cranking / charging system test / IR test |
| LCD | 4-line & 4-color large LCD with adjustable brightness |
| Printer | 2”
thermal printer |
| Supported Battery Types | Flooded,
VRLA/GEL, AGM Flat, AGM Spiral, EFB |
| Battery Ratings | CCA/SAE,
EN, JIS, DIN, IEC, CA/MCA |
| Operating Range | 40~2,000
CCA(SAE) |
| Voltage Range | 1V
~ 31.5V |
| Dimension | 255 (L) x 135(W) x 45(H) |
| Languages | English,
French, Spanish, German, Italian, Portuguese |
