Technical Data :
- Lift Capacity : 4000 kg
- Maximum Lifting Height : 420 / 1730 mm
- Minimum Height : 340 MM
- Platform Length : 4300 mm
- System Pressure : 25 Mpa
- Pressure Pneumatic : 0.5 Mpa
FEATURES
• Double deck hidden structure. The appearance is succinct and clear, superior performance.
• Adopt series synchronous hydraulic pressure loop, good synchronization and high horizontal precision.
• Electromagnetism detector fitting control lifting platform descent, guarantee the security of person and equipment.
• May adjust turn-plate according to the automobile gauge establishment, lengthening rear wheel slide is advantageous for two lifting disassembling tire and the chassis overhaul.
• Has the manual pump connection, suddenly power cut may lower safely the lifting machine.
• May choose the ground or ditch to install.

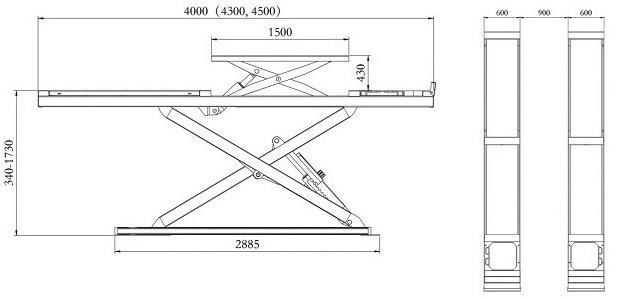

SPECIFICATION VIEW
| Lift Capacity | 4000 kg |
| Total toe | ± 20° |
| Maximum Lifting Height | 420 / 1730 mm |
| Minimum Height | 340 mm |
| Platform Length | 4300 mm |
| System Pressure | 25 Mpa |
| Pressure Pneumatic | 0.5 Mpa |
