Technical Data :
- Lifting capacity : 4000 kgs
- Lifting / lowering time : 60 second
- Lifting height : 2160 mm
- Lowest height : 290 mm - Jack raised height : 450 mm - Overall Runway length : 4200 mm - Power Requirement :- 415 V / 50 HZ / 3 PH - Approx. weight : 2000kg |
FEATURES
Features :
• Robust construction and super-balanced lift for wheel alignment.
• Surface mounted or flush mounted.
• Very precise platform leveling accuracy 1mm possible.
• Mechanical safety lock with air operated engagement and release.
• Possibility for manual emergency lowering.
• Overload valve included.
• Lowering speed control valve included.

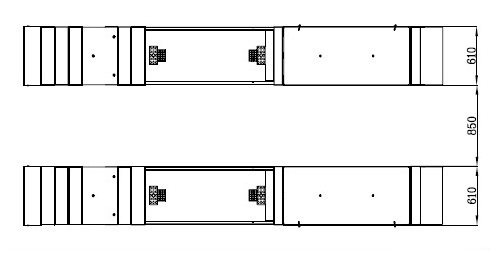

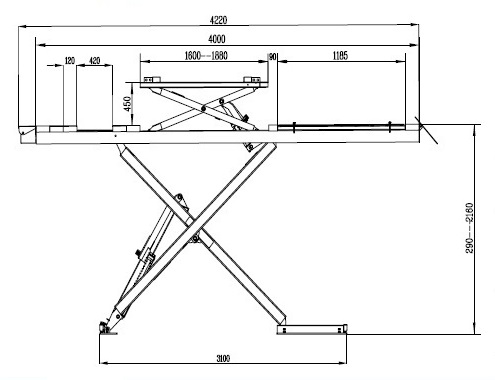

SPECIFICATION VIEW
