Technical Data :
- Lifting capacity for main jack : 3500 kg
- Lifting capacity for centre jack : 2000 kg
- Overall height for main jack : 1780 mm
- Overall height for centre jack : 455 mm
- Lifting time for main jack : 60-70 second
- Lifting time for centre jack : 5-15 second
- Overall width for main jack : 2,020 mm
- Overall width for centre jack : 820-1210 mm
- Electric Supply :- 415 V / 50 HZ / 3 PH
| - Net weight : 1800 kg |
FEATURES
Features :
• Homologated and certified product according to the European Directive EN1493:1998+A1:2008.
• Lift is design for surface installation.
• Hydraulic synchronization with device to avoid unexpected uneven of platforms.
• Mechanical safety with air-operated engagement and release.
• Automatic stop at the maximum lifting height.
• Overload valve equipped.
• Manual emergency lowering.
• "Dead man" operation by 24V push button for both runway and jack beams.

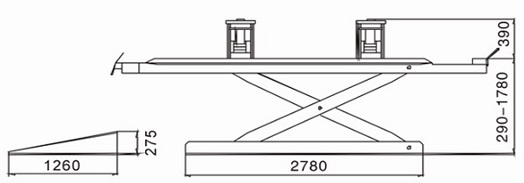

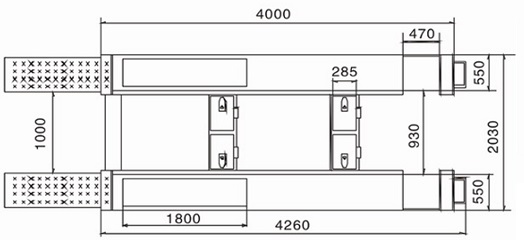

SPECIFICATION VIEW
