SINO ITALIAN | STD7532C

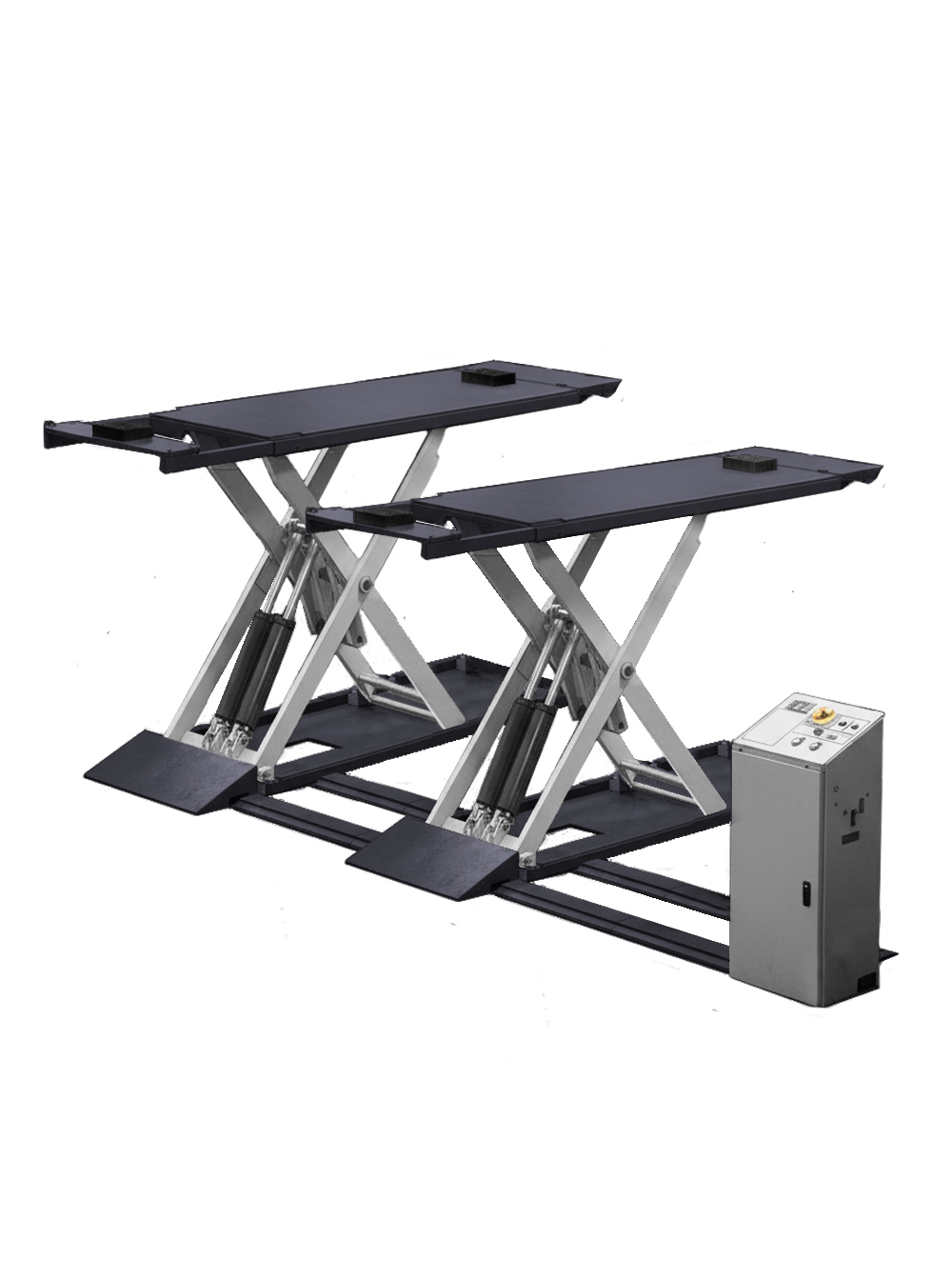

SINO ITALIAN STD7532C SCISSOR LIFT

FEATURES

suitable for either on-ground or in-ground installation

Double master/slave hydraulic circuits assure perfect synchronization.

Solenoid safety valve in each hydraulic circuit Pressure overload valve is equipped in power unit

24V safety control

Alarming during final lowering phase

Manual emergency lowering

SPECIFICATION VIEW

Lifting capacity

Max. lifting height

Min. height

Platform length

Lifting time

Electric power

Motor power

Weight

3200kg

1150mm

110mm

1547 – 2270mm

40s

230V/400V

1.5KW

900kg
