SINO ITALIAN | STD7135KG

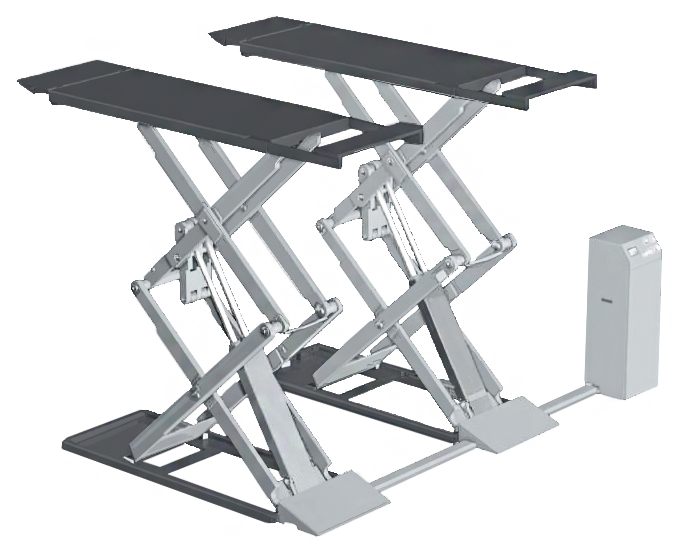

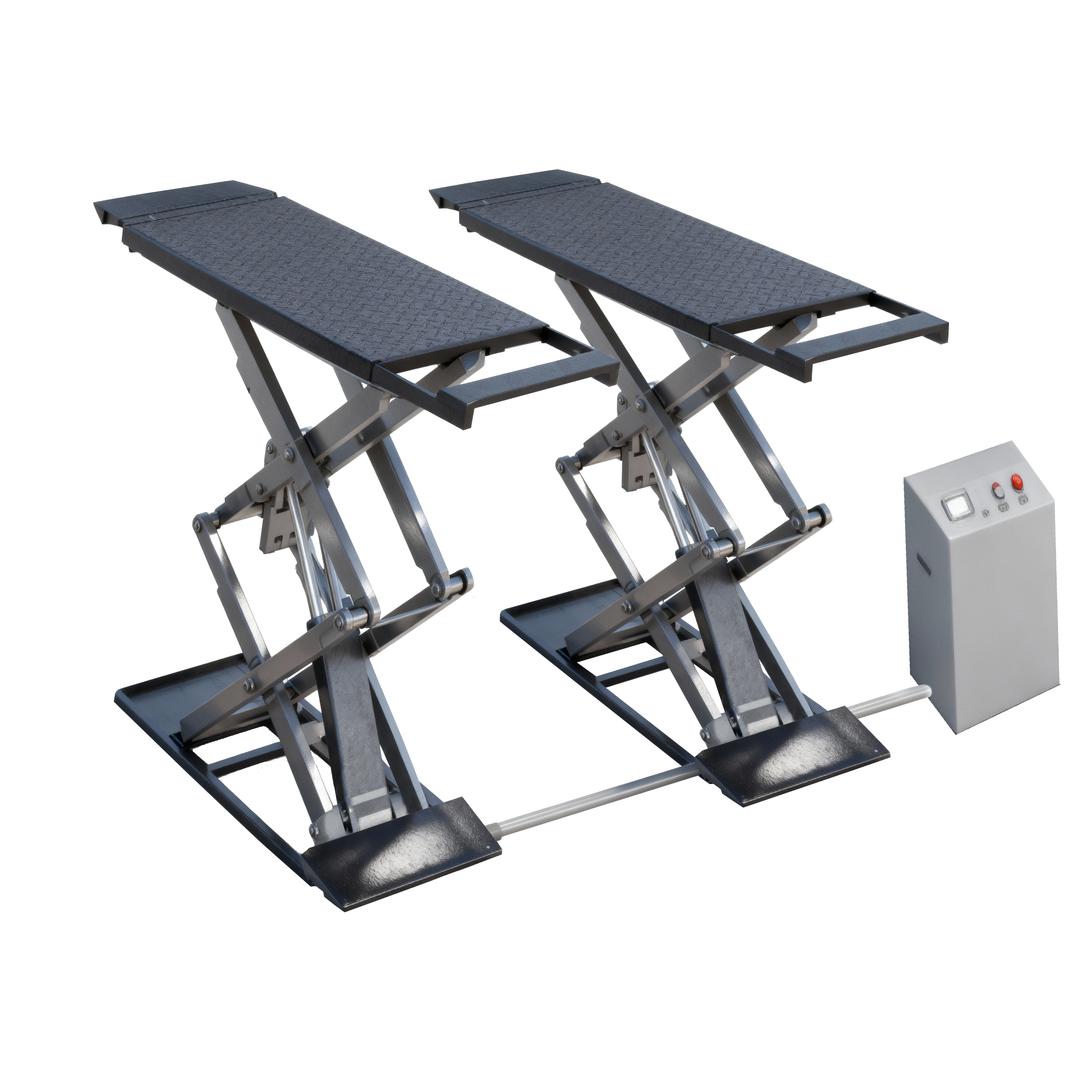

SINO ITALIAN  | STD7135KG  LOW PROFILE SCISSOR LIFT

FEATURES


  • Homologated and certified according to European Directive EN1493:2010 suitable for either on-ground or in-ground installation Double master/slave hydraulic circuits ensure perfect synchronization.
  • Solenoid safety valve in each hydraulic circuit
  • Automatic leveling by simply pushing a bleeding button
  • A pressure overload valve is equipped in power unit's 24V safety control
  • Alarming during the final lowering phase Manual emergency lowering

SPECIFICATION VIEW


  • Lifting capacity :3,500 kg
  • Max. lifting height :1,900 mm
  • Min. height : 105 mm
  • Platform length : 2270 mm
  • Lifting time : 60s
  • Electric power : 400V
  • Motor power :2.6kw
  • Weight :1100 kg
