SINO ITALIAN | STD-7230B

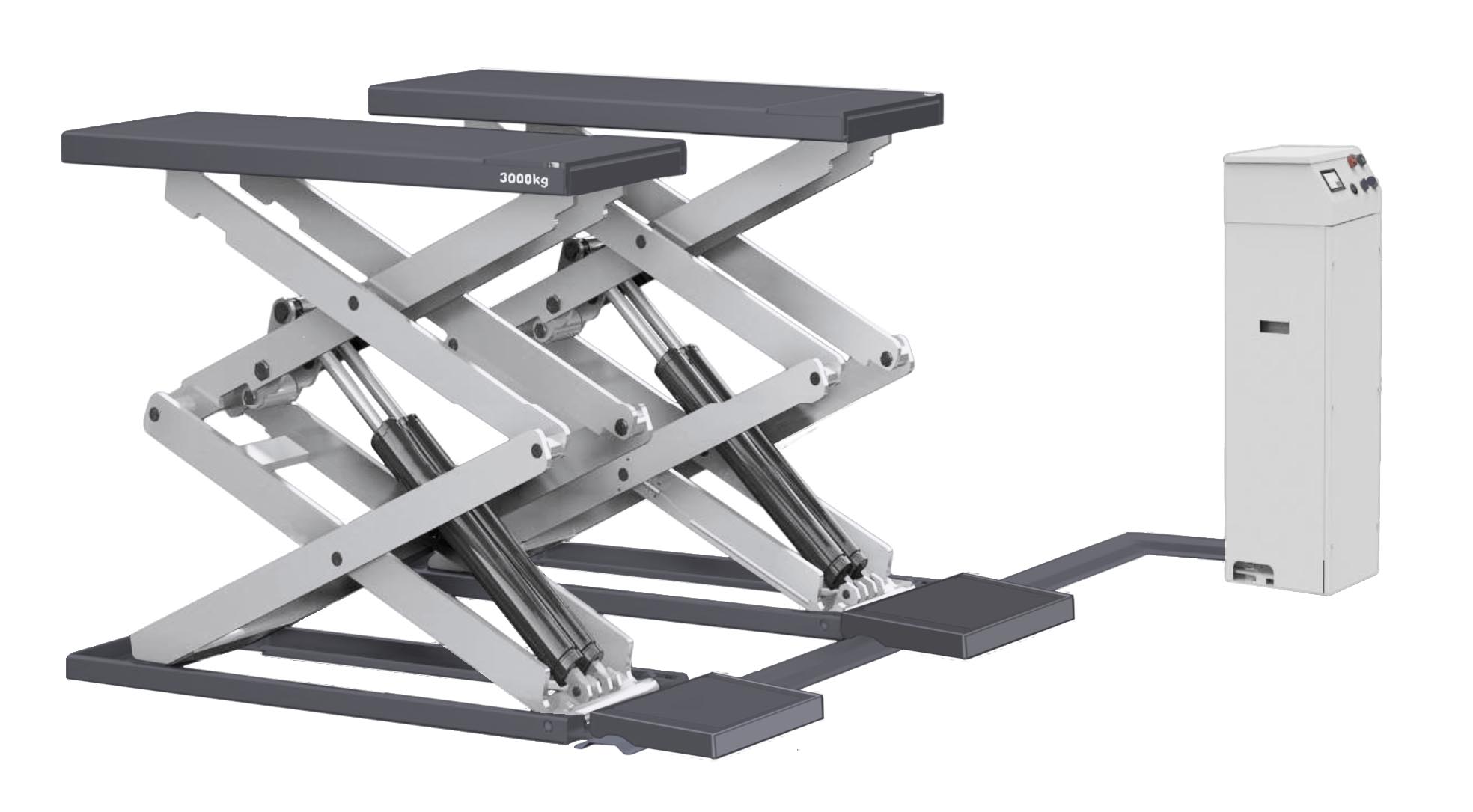

SINO ITALIAN STD-7230B LOW PROFILE SCISSOR LIFT

FEATURES

  • Homologated and certified according to European Directive EN1493:2010
  • Low-profile structure suitable for on-ground installation
  • Double master/slave hydraulic circuits assure perfect synchronization.
  • Solenoid safety valve in each hydraulic circuit
  • Automatic leveling by simply pushing a bleeding button
  • Pressure overload valve is equipped in power unit
  • 24V safety control
  • Alarming during final lowering phase
  • Manual emergency lowering

SPECIFICATION VIEW

  • Lifting capacity : 3000kg
  • Max. lifting height : 1900mm
  • Min. height : 112mm
  • Platform length : 1455-1900mm
  • Lifting time :  60s
  • Electric power : 230V/400V
  • Motor power : 2.2KW/2.6KW
  • Weight : 710kg
