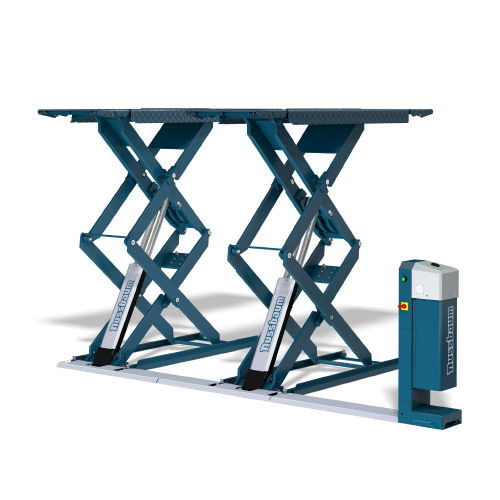

Lift for car reception, tire service, fast repair and maintenance
Increase the productivity of your workshop space – A more productive workplace with optimal utilization of space, so that the work with JUMBO LIFT is from a business perspective the most reasonable solution.
FEATURES
• Maximum use of workshop space
• Relocation possible in approx. 2 hours
• High resale value
• Fast lifting and lowering times
• Free passage between the scissors
• No cross connection
• Fast and safe pick-up of the car thanks to the super ductile polymer pads
• JUMBO 3500 NT with patented HyperFlow®
MAXIMUM LIFTING HEIGHT
effective lifting stroke of 2000 mm – enough space under the vehicle, also for
in-ground installation
FREE ACCESS
between the scissors, there is no mechanical connection between platforms
FLAT CONSTRUCTION
low construction height enables an above-ground installation and driving-on,
even with low clearance vehicles
HyperFlow TECHNOLOGY
• the synchronization is automatically set / adjusted at all times during
operation
• automatic purging of the hydraulic system during operation
LONG LIFECYCLE & STABLE
• lubricating nipples at the bolts provide an easy maintenance and secure a
long lifecycle
• high quality steel construction ensures directional stability
NT TECHNOLOGY = PERFECT &
SMOOTH RUNNING POWERFUL, SAFE, STEADY
the redundant fully hydraulic system guarantees maximum operating safety
through using two independent hydraulic circuits
LONG LIFE, THANKS TO FULLY
HYDRAULIC SYSTEM
• no need of safety ratchet
• no electrical and pneumatic components at the lift
SPECIFICATION VIEW
| Lifting capacity | 3500kg |
| Lifting height | 2000mm |
| Platform length | 1460 mm - 2160 mm |
| Platform width | 610 mm |
| Drive-on height | 105 mm |
| Total width | 2020 mm |
| Lifting time approx | 36 sec |
| Power requirement | 450V / 50Hz / 3PH |
