ADIROC ~~ QJY4.0-D7


FEATURES

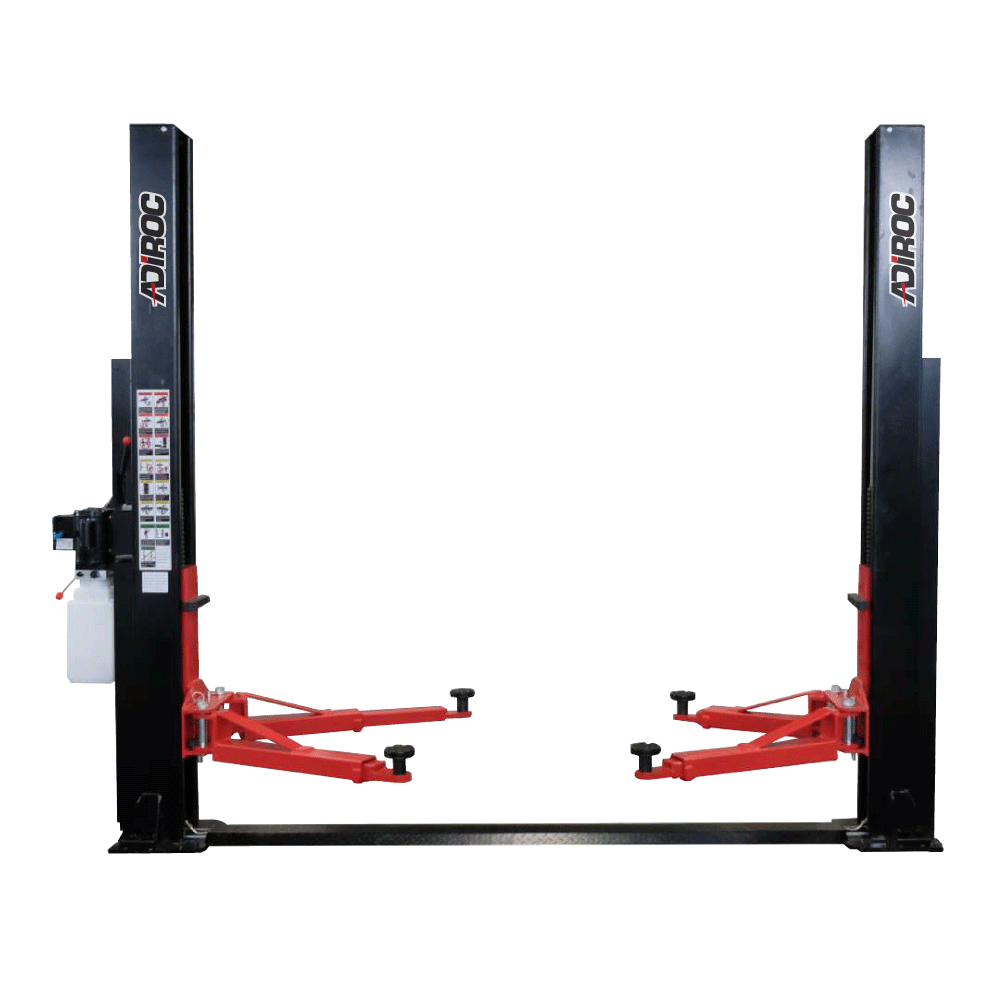

ADIROC ~~ QJY4.0-D7 TWO POST LIFT WITH MANUAL 1 SIDE RELEASE

-1930mm (76”) lifting height.

-Baseplate lift for low ceiling application

-Manual one side release

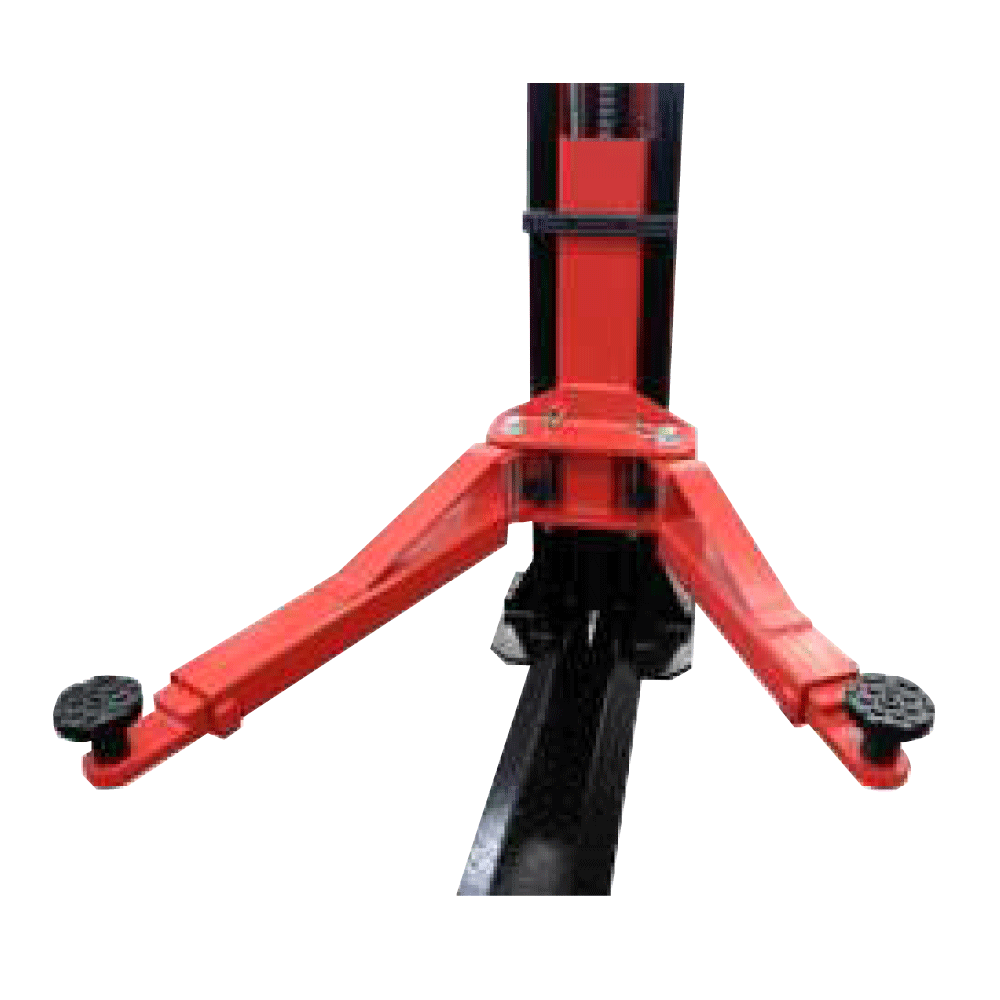

-Drop in type lifting pads with clearance height less than 95mm (3 9/10”)

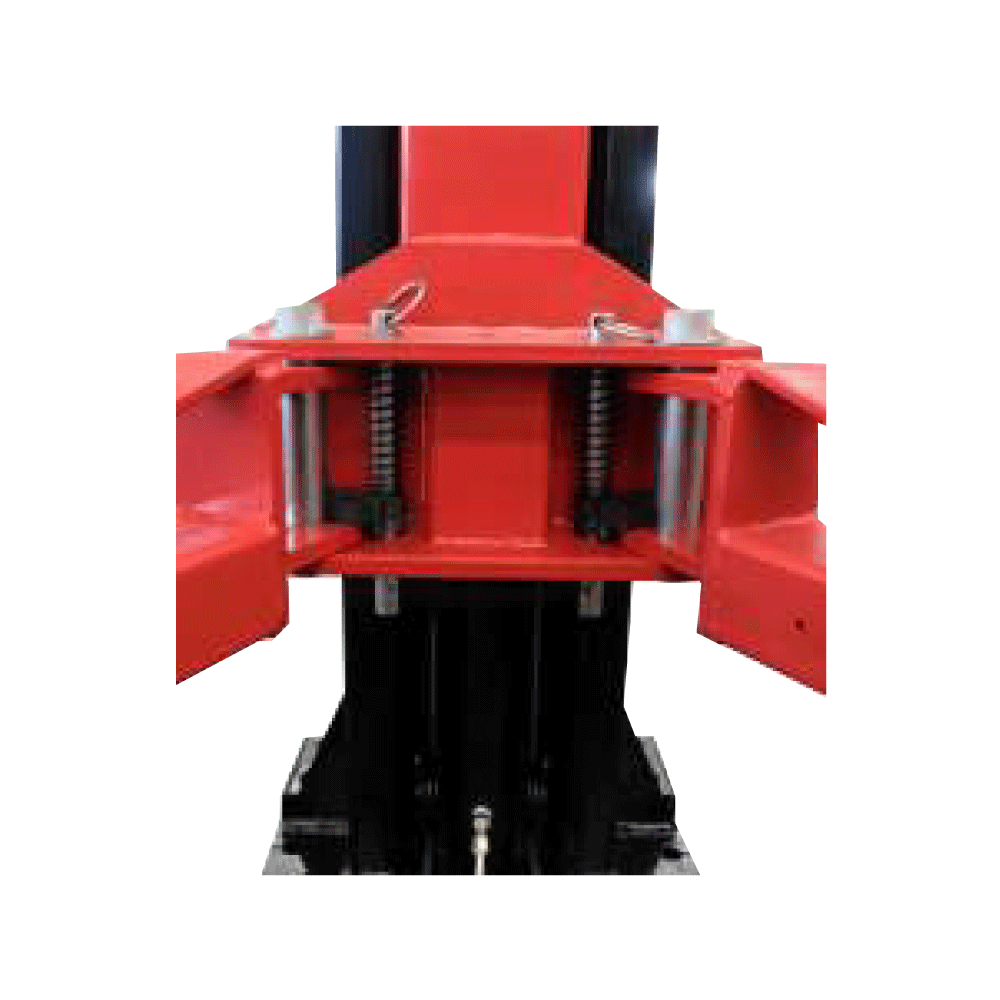

-The arm locks engage automatically when the lift is raised and disengage when lowered fully.

-Durable powder coating.

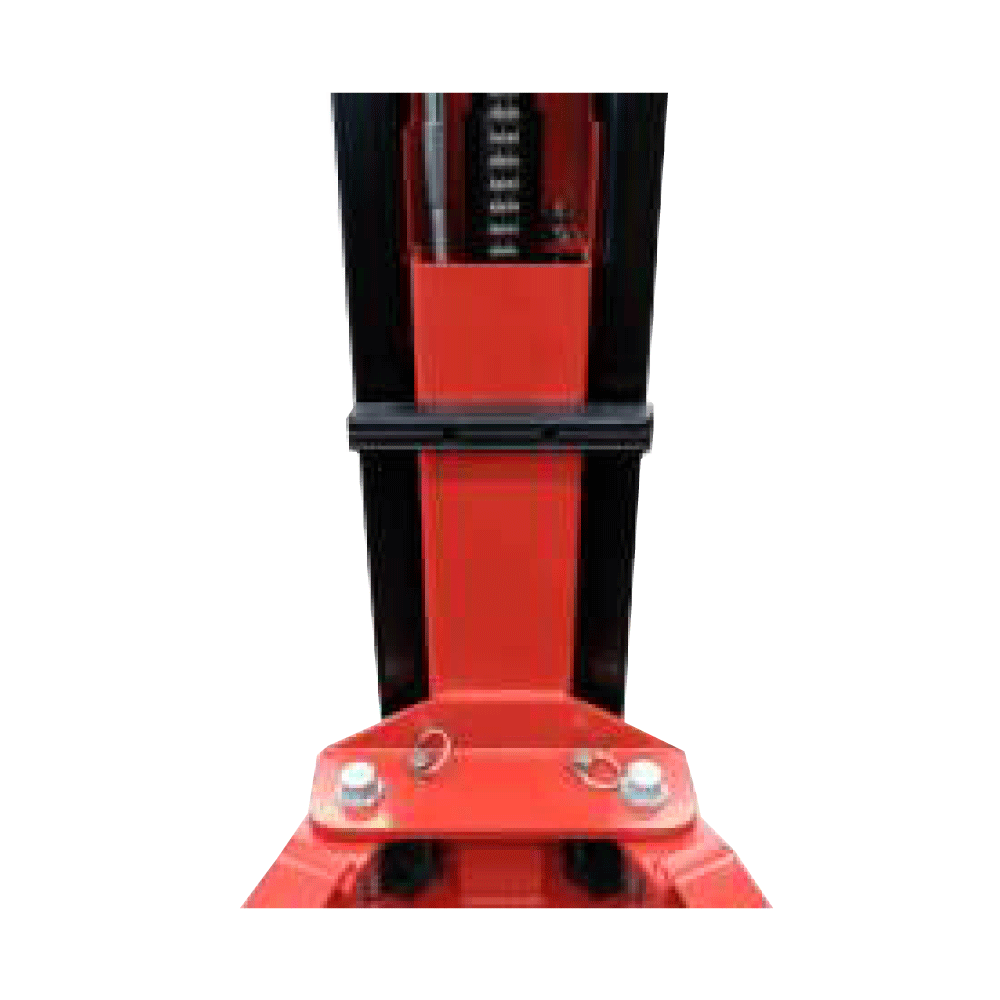

-Top and bottom pulley mount design avoid pulley from coming off.


SPECIFICATION VIEW


Capacity : 4000kg
Min height : 95mm
Lifting height : 1930mm
Power of motor : 2.2kw
Power supply : 220v/380v
Width of the rack : 3384mm
Height of the rack : 2832mm
Hydraulic oil : N46
Net weight : 600kg
