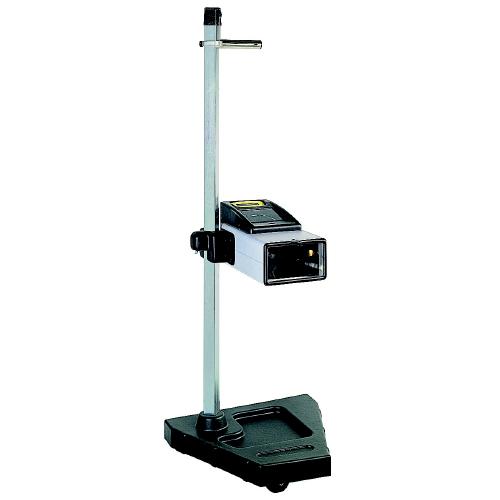

CORGHI | HT970


FEATURES


w Thorough analysis of passing beam, driving beam and fog lights.
w User-friendly, supporting the operator for the whole test.
w Digital luxmeter with candle and lux scale
w Preset for connection to a remote unit.
w Self-supplied by 9V internal battery and preset for external power supply.
w Glass lens
w Autopower off.
w Available in 12 language.
w Test repeatability

SPECIFICATION VIEW


w External power supply: 7.5 - 16 Vdc
w Consumption: 30 mA at 9 Vdc
w 9V battery internal supply (transistor)
w Photometry: Measurement of light intensity with full scale of 150.000 cd and brilliancy of 240 Lux a 25m , accuracy ±5%.
w Water level for chamber horizontal alignment.
w Unidirectional mobile base
w Laser aiming for alignment with the projector
w Chamber range: 0,26 m - 1,45m.
w Horizontal deviation adjustment of the light beam with accuracy of ± 3 cm at a 10 m distance
w Vertical deviation adjustment of the light beam with accuracy of ± 2 cm at a 10 m distance
w Size: 68x59x180
w Weight: 34 Kg
