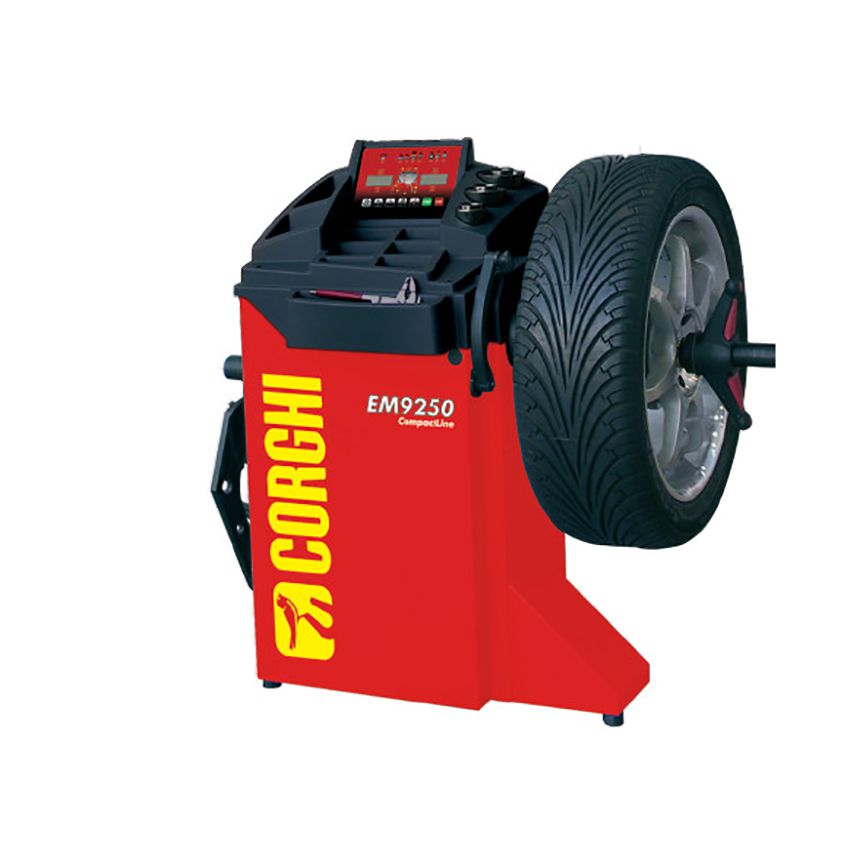

High performance digital wheel balancer with latest generation software solutions

Manual input of wheel diameter and distance c/w LED Illuminator & Laser.

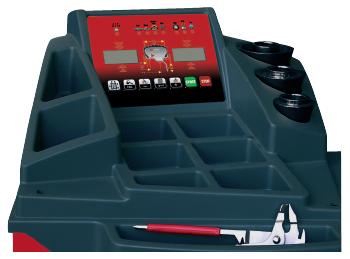

DISPLAY AND WEIGHT TRAY
A double display (A) control panel enables a quick and intuitive selection of the balancing mode and immediate access to the most common operating functions. Weight tray (B) ergonomic and functional, it features many large tray to house all different types of weights and the various tools.

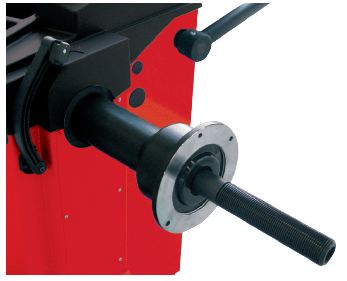

SPIN UNIT
Spin unit derives from the superior models of the B-Series and provides functional features typical of the upper models: reduced cycle time, measuring wheels weighing up to 75 kg and wheel balancing with inside offset of up to 275 mm without using additional spacer. The innovative drive and zero maintenance ensure maximum reliability.

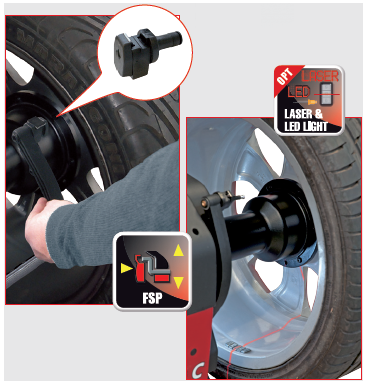

WHEEL DIMENSION DETECTION
Electronic input of wheel diameter and distance with FSP function which automatically activates the balancing program, avoiding keypad selection (*). Three modes to position the adhesive weights: with the weight holder clip (*), with the 6 o’clock laser indicator (*) or manually at 12 o’clock.

AUTOMATIC POSITIONING AND LED ILLUMINATOR
Automatic wheel positioning in the point where the balancing weight has to be applied (RPA) and electrical positioning brake (*). LED spotlight to light-up the work area and make it easier to clean the rim, check the wheel and apply weights. The adhesive weights can be positioned extremely rapidly using the laser pointer at 6 o’clock (*).

AWD SONAR DEVICE (OPTIONAL)
AWD automatic sensor (Auto width Device) for contactless measurement of wheel width (*).

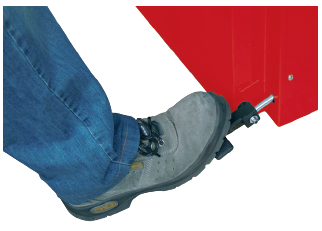

PEDAL WHEEL HOLDER (OPTIONAL)
Pedal wheel holder shaft locking brake, makes easier both the wheel clamping and unclamping options as well as the application of weights (*).

SUPPORT BASE (OPTIONAL)
Front support base for balancing wheels up to 50 kg. without fastening.
