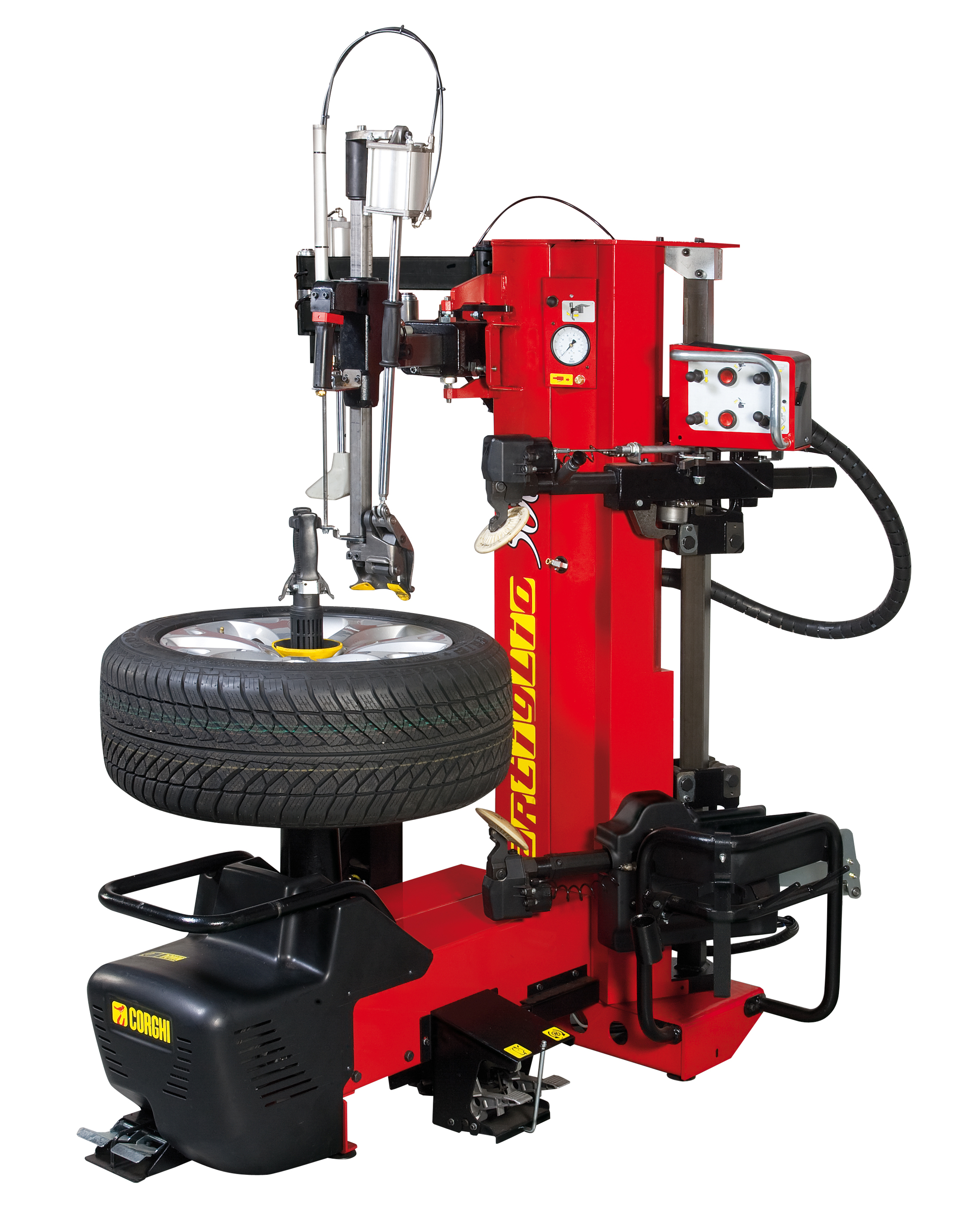

CORGHI | ARTIGLIO 500

32" automatic tyre changer with 2nd generation “Leva la leva” (Without lever) technology

Even more performing, even more ingenious

New automatic tyre changer with 2nd generation “Leva la leva” (Without lever) technology for vehicle, SUV and commercial vehicles wheels up to 32”.
Many technical innovations: dynamic bead breaking device with a dual bead breaker disc, newly designed head group, more performing wheel support plate clamping, reinforced structure, great attention to ergonomics and control availability.
All of this means a faster operating speed without risks to the operator and the rims, even during the most critical phases, great simplicity of use and universality, for equipment whose features can be used 100%.



FEATURES


• DYNAMIC BEAD BREAKING DEVICE with dual specular bead breaker disc. The radial positioning of the discs is made easier by an automatism that is able to prevent any manual positioning by the operator.
• CONTROLLED PENETRATION (Patent pending) Precision, rapidity and repeatability are guaranteed by the patented bead breaking system and by the perfectly synchronised and symmetrical motions of the two discs.
• INTUITIVE AND COMPLETE The multifunctional control console contains all the operating controls. Ideal for dynamic bead breaking and for rim and tyre match mounting, thanks to the two dual control discs.
• MOTOINVERTER DRIVE SYSTEM The right torque at the right speed (7 - 18 RPM).
• EFFORTLESS OPERATION A wheel lifter is fitted as standard, for effortlessly placing wheels of any type onto the turntable.
• Head Unit The demounting procedure uses the same working movements but absolutely no effort is required from the operator thanks to the “Leva la leva” (Without lever) technology incorporated in the head (Patent Pending) - The mounting procedure doesn’t change: it is just as quick and convenient as before.
• SAFE AND UNIVERSAL WHEEL CLAMPING The axial mounting turntable ensures rapid clamping while permitting bead breaking on both sides without having to turn the wheel itself. The constant working height (reverse rims excluded) has been optimised for ideal operator ergonomics with all wheel types.


SPECIFICATION VIEW


Wheel dimension range
Rim diameter 12" - 32"
Max tyre diameter 1200 mm (47")
Max tyre width 15" (from wheel supporting base)
Tyre types processed conventional, low profile, run flat
Turntable
Clamping mechanical-manual
Drive system 2 speed motoinverter
Rotation torque 1100 Nm
Rotation speed 7 - 18 rpm
Bead breaker
Max bead breaking range 670 mm
Bead breaker stroke540 mm
Bead breaker force 7600 N
Wheel loading / unloading
Operation Pneumatic
Max wheel weight 85 kg
Power supply
Electric 1PH 230V - 0.98 kW 50/60 Hz
Electric 1PH (alternative) 110V - 0.98 kW 50/60 Hz
Pneumatic operating pressure 8 bar (minimum)
Weight 380 kg (with wheel lifter)
