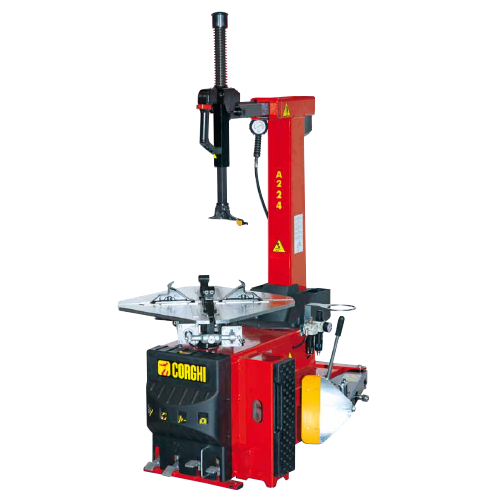

A224 TI - complete with Bead Seater
FEATURES
Automatic tyre changer with pneumatic tilting column and 24" turntable
• Version with manual lowering of the head arm.
• Pneumatically-operated tilting arm support column with high torsional rigidity, can be tilted in any working position.
• Sliding supports with interchangeable clamping centres. Higher cast clamps for improved rim clamping from inside and outside.
• Turntable with two pneumatic cylinders able to safely clamp any type of rim.
• Telescopic (hexagonal) horizontal arm for quicker positioning of the head in relation to the rim.
• Simultaneous pneumatic locking (manual) of the horizontal arm and head carrier vertical arm with automatic positioning of the latter to ideal working position.
• Extractable pedal controls.
SPECIFICATION VIEW
| Turntable | |
| Inside clamping capacity | 13" - 26" |
| Outside clamping capacity |
10" - 24" |
| Maximum tyre diameter | 1100 mm |
| Maximum tyre width | 355 mm (14") |
| Rotation torque | 1200 Nm |
| Rotation speed | 8 rpm - 13 rpm (per 2V) |
| Height above the ground | 665 mm |
| Bead Breaker | |
| Maximum opening | 380 mm |
| Shoe force | 15.500 N |
| Power supply | All power supply |
| Operating pressure | 10 bar |
| Weight | 255 kg |
| Dimensions LxDxH | 1090 x 1700 x 1835 mm |
