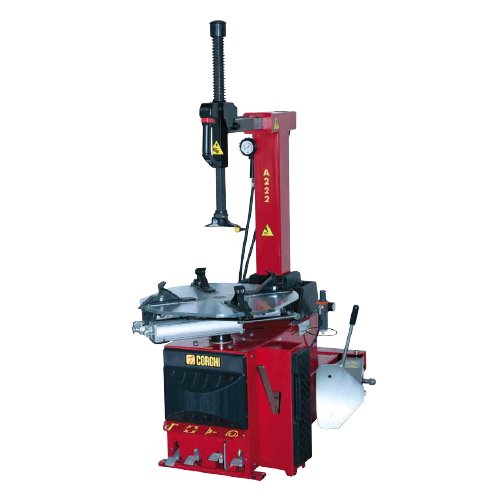

CORGHI | A222

Automatic tilting back tyre changer for rims up to 22”.

Automatic tyre changer suitable for all car, SUV, van and motorcycle wheels.
Available in one-speed motor version and in 2V version with two-speed motor and tubeless inflating device TI. Extractable pedal controls.

FEATURES


 TOOL-HOLDER SHAFT By simply pressing a button, alignment (both horizontal and vertical) is obtained simultaneously with clamping. Mechanical balancing of tool-holder shaft. A roller under the horizontal operating arm minimises the effort of operators.

 TOLL-HEAD Tool head with new profile to suit to new tyres and rims. Interchangeable plastic parts to protect the rims, during tyre demounting/mounting.

 TURNTABLE The turntable can clamp alloy rims of new-generation from both outside and inside without any damage thanks to its special plastic protections supplied on request. In TI models, inflating nozzles, placed on the sliding jaws, adapt automatically to the rim diameter.

 BEAD BREAKER The powerful bead breaker is operated by a double acting stainless steel cylinder of 186 mm diameter. A special plastic guards (optional), to protect alloy rims during the bead-breaking.

 PEDALS Ergonomic pedals made of aluminium with clear functional symbols.

 TI VERSION In TI models, the high capacity tank (16 litres) located outside the unit complies with Norm EN 286 I.1 in conformity with EEC (European Economic Community) guidelines 87/404/EEC. The tubeless inflating device pedal (A), located at the side of the unit to prevent accidental activation.


SPECIFICATION VIEW


Turntable
Inside clamping capacity 13" - 25"
Outside clamping capacity
10" - 22"
Maximum tyre diameter 1000 mm (39")
Maximum tyre width 317.5 mm (12")
Rotation torque 1200 Nm
Rotation speed8.5 rpm
Bead Breaker
Maximum opening320 mm
Shoe force15.500 N
Tool
Working range8" - 26"
Power supply
Electric motor 2V0.9 / 1.2 Kw - 3PH - 400V - 50Hz
Electric motor0.75 kW - 3PH - 400V - 50Hz
Operating pressure8 - 10 bar
