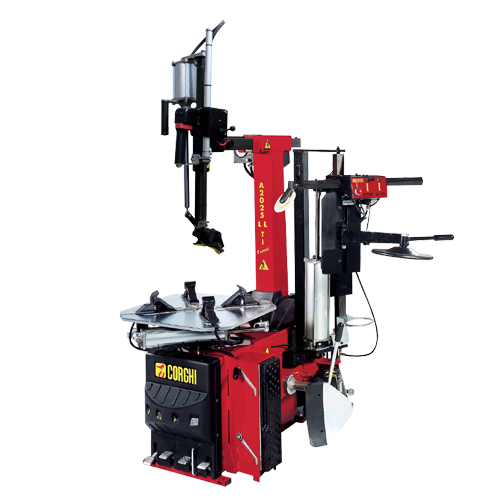

Complete with SP2300 Standard Universal multifunctional device, consisting of three integrated operating units capable of working on all types of tyre - including ultra low profile and run flat tyres - and light alloy wheel rims.
FEATURES
SPECIFICATION VIEW
| Turntable | |
| Inside clamping capacity | 13" - 26" |
| Outside clamping capacity | 10" - 24" |
| Max tyre diameter | 43" (1100 mm) |
| Max tyre width | 14" (360 mm) |
| Rotation torque | 1200 Nm |
| DV version rotation torque | 1300 Nm |
| Rotation speed | 8 rpm |
| DV version rotation speed | 6 - 15 rpm |
| Height above the ground | 675 mm |
| Bead breaker | |
| Max opening | 380 mm |
| Shoe force | 15,500 N |
| Support | Telescopic |
| Power supply | |
| Electrical 3PH | 230/440V - 0.75kW |
| Electrical 1PH | 110/230V - 0.75kW |
| Electrical 1PH DV version | 230V - 0.75kW |
| Weight | 259 kg |
