FEATURES

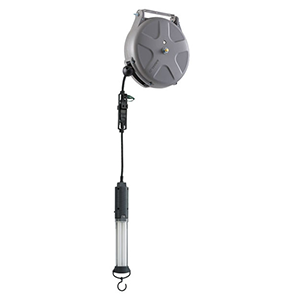

• Outlet cord reel with work light
• Compact and light weight
• Ideal for space restricted installations
• Wall or ceiling mount
• Reels come complete with inlet cord, ball stop and complete mounting hardware
• Redesigned steel ratchet and gears for long life
• Solid brass axel
• Flexible, oil and water resistant cord
• Stainless protector
SPECIFICATION VIEW
| Model | Cord | Power Rating (Voltage / Current) | Inlet Cord | Dimensions (mm) | Body Weight (kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cord Type | Cord Thickness (mm2) | No. of Conductor | Length (m) | Outlet Plug | Connection | Length (m) | A | B | C | |||
| SCS-310C | PSE | 1.25 | 3 | 10.0 | Hand Light | AC125V/ 6A AC250V/ 6A | Plug (w/ground clip) | 0.8 | 314 | 290 | 164 | 4.5 |
