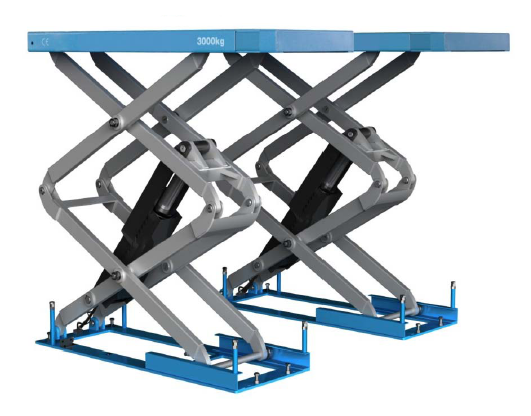

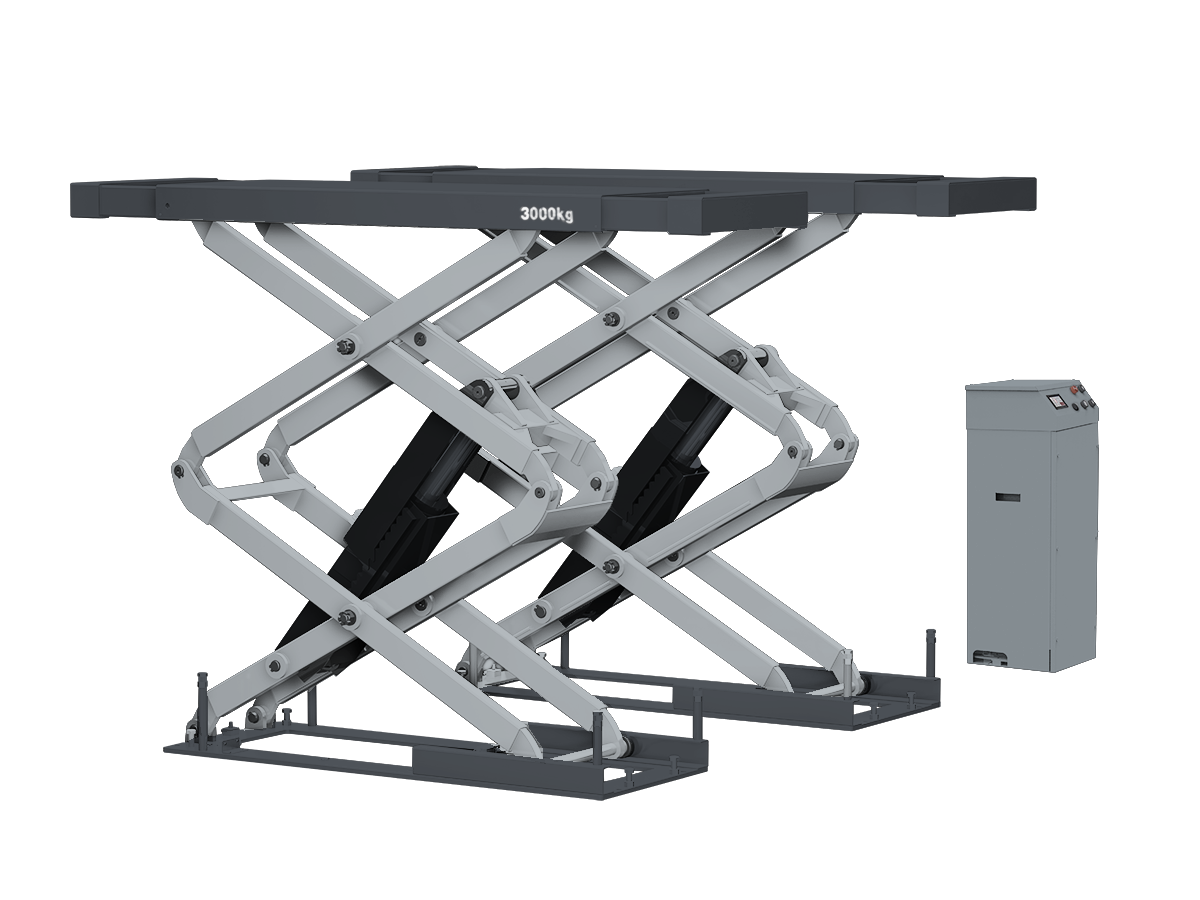

SINO ITALIAN | STD7330



FEATURES


· Homologated and certified product according to the European Directive
· Mechanical safeties, air-operated engagement and release.
· Parachute valve included.
· Overload valve included.
· Lowering speed control valve included.
· Limit switches for top height and the safety height
· Alarming during the final lowering
· Manual emergency lowering

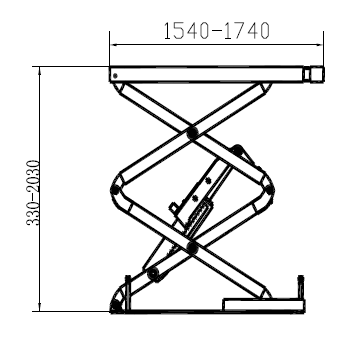

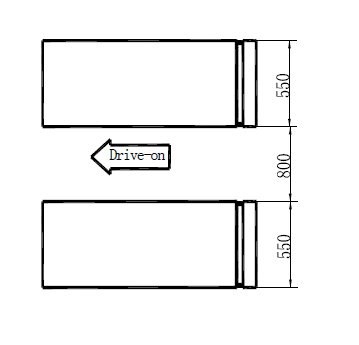

SPECIFICATION VIEW


Lifting capacity 3000 kg
Max. Lifting Height 2060 mm
Min. Height 330 mm
Platform Length 1540 - 1740 mm
Lifting Time 60 sec
Electric Supply 415 V / 3PH / 50 Hz
