FEATURES
• Homologated and certified product according to the European Directive EN1493:1998+A1:2008.
• Super low-profile design with double master/slave hydraulic circuits.
• With solenoid safety in each hydraulic circuit.
• Automatic levelling by simply pushing a bleeding button.
• Overload valve equipped.
• Lowering speed control valve included.
• Sensors for top height and the safety height.
• Alarming during the final lowering.
• Manual emergency lowering.

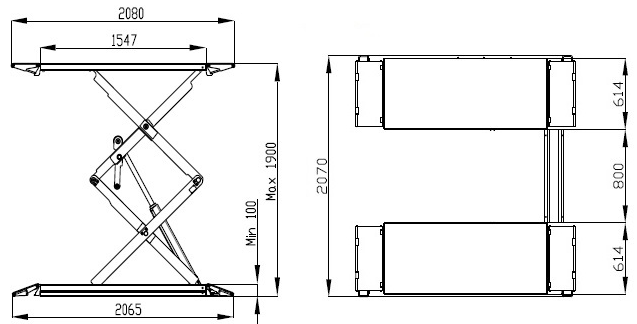

SPECIFICATION VIEW
| Lift Capacity | 3500 kg |
| Maximum Lifting Height | 1900 mm |
| Minimum Height | 100 mm |
| Platform length | 1547 - 2080 mm |
| Lifting time | 60 sec |
| Power | 230V/ 1 Ph/ 50Hz |
| Weight | 1080 kg |
