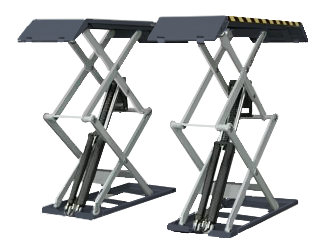

Low Profile scissor lift with a capacity of 3000kg
FEATURES
· Simple operation
· 105 mm collapsed height
· 4 cylinders
· Take off lever on the arm
· Platform length 1540 mm
· 4pcs drive on / off ramps included
· Standard delivery include 4pcs rubber block & installation expansion bolts
· Grid platform available (option)
· Oil pump from Italy
SPECIFICATION VIEW
| Type | Double scissor, on ground installation |
| Operation | Electro-hydraulic |
| Capacity | 3000 kg |
| Lifting Height | 105 mm to 1830 mm |
| Platform length | 1540 mm to 1740 mm |
| Platform width | 540 mm |
| Lifting time | 55 sec |
| Lowering time | 35 sec |
| Motor power | 2.2 kW |
| Hydraulic pressure | 210 bar |
| Oil capacity | 18 L |
| Power Supply | 415V/3PH/50Hz/N+PE |
| Air Supply | 6/8 bar |
| Mechanical safety | Latching device, pneumatically operated |
| Hydraulic safety | Parachute valves |
| Minimum Concrete Quality | B25 |
| Net Weight | 700 kg |
