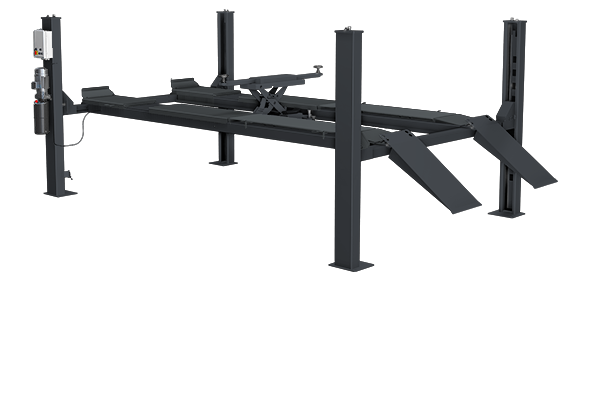

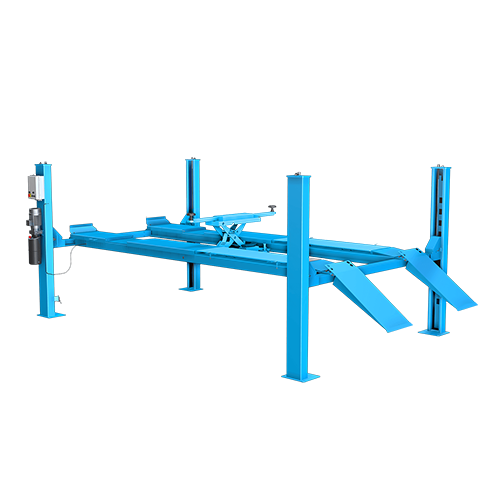

SINO ITALIAN | STD6745



FEATURES


· Homologated and certified product according to the European Directive EN1493:2010
· Electro-hydraulic operation with synchronization cables.
· Bolt-on alignment kit included as standard for alignment type
· A 2500 kg jacking beam included as standard for alignment type, with air pump operation
· Air locking release
· Two turntable recesses can accommodate any wheelbases of vehicles.
· A 24V control box included for CE version.
· Front wheel stops can easily be replaced by optional drive-off ramps.


SPECIFICATION VIEW


Lifting capacity 4200 kg
Max. Raised Height 1800 mm
Lowest Height 130 mm
Runway Length 4506 mm
Distance between 2 posts 2850 mm
Raised Time 60 sec
Electric Supply 415 V / 3PH / 50 Hz
