FEATURES
• Asymmetric post installation
• Very stable bent posts
• Without base frame
• Two motors
• Cold-rolled spindle
• Nylon nut sets
• Carriage with slide blocks
• Pushbutton control unit with alarm signal
• Programmable top stop
• Electronic synchronization
Approvals:

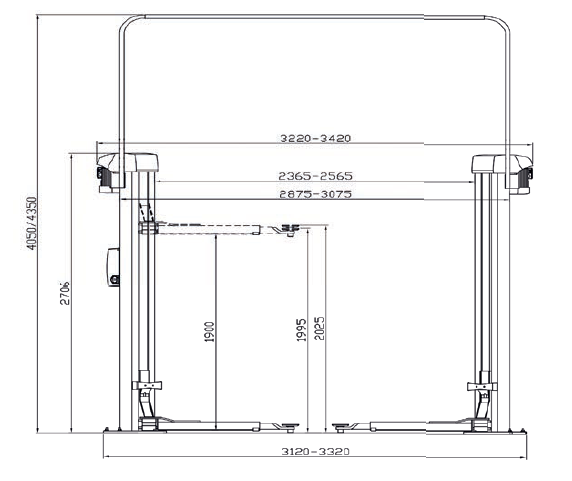

SPECIFICATION VIEW
| Lifting capacity | 3000 kg |
| Lifting height | 1900 mm |
| Working height | 1995 - 2025 mm |
| Lifting / lowering time Standard | app.40 Sec |
| Arm superstructure: | |
| Min. height |
95 mm |
| Drive-through width | 2110 - 2310 mm |
| Width between posts | 2365 - 2565 mm |
| Total width - outer edges posts | 2875 - 3075 mm |
| Total height post | 2706 mm |
| Total height inkl portal | 4050 / 4350 mm |
| Arm length front, min - max | F std 540 - 850 mm | F DT 480 - 840 mm |
| Arm length rear, min - max | 900 - 1425 mm |
