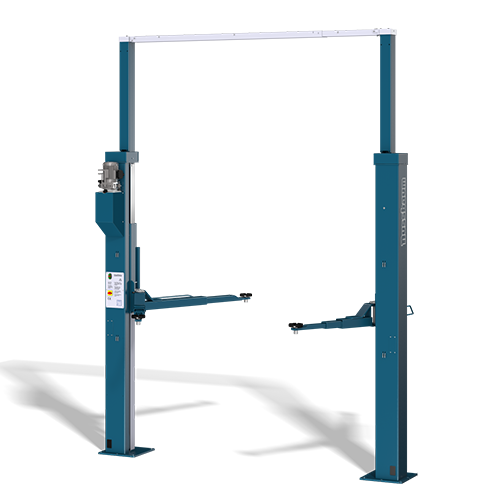

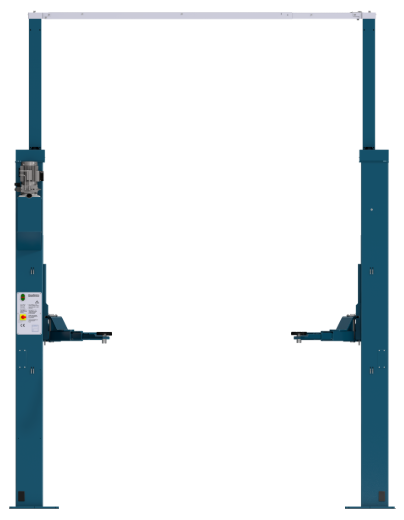

NUSSBAUM | HF 3000

How does the Nussbaum safety catch differ from conventional safety systems?

During the lifting process, the Nussbaum safety latch automatically secures the vehicle at intervals of 100 mm up to the maximum lifting height of  mm. The safety switch attached to the control column allows the lift to be additionally placed manually in the latch. In contrast to conventional 2-post lifts, the safety latch does not make any clicking noise during lifting and lowering, which is typical for this type of lifts. The vehicle can be lowered immediately after release of the latch, without first having to be lifted upwards out of the latch.

The pulling hydraulic cylinders protect the hydraulic circuit even during intensive use and require very little energy. The low power consumption, the consistent automatic compensation of the hydraulic circuits by the HyperFlow® system and low maintenance costs, also thanks to the reduced number of moving parts, reduce running costs. The columns and support arms are welded in Nussbaum's own state-of-the-art welding facilities, shot-peened and subsequently Blue powder-coated. Your lift is thus protected against dirt and weather in the long term. The design and the processing of the Power Lift HF 3000 DT give it an elegant overall appearance, which also allows your workshop to appear in the best light in direct customer contact.


FEATURES


w Load capacity: 3000 kg

w Less wear, less downtime for maintenance thanks to HyperFlow®

w Automatic safety latch (no clacking during lifting and lowering)

w Guaranteed quality: The hydraulic cylinders are individually tested before dispatch

w Developed and manufactured in Germany


SPECIFICATION VIEW


Lifting capacity 3000 kgs
Lifting / lowering time approx 19 / 15 sec
Clearance height 3967 mm
Lowest lifting point 95 - 140 mm
Total height 4017 mm
Total width 3100 mm
Drive through width 2395 mm
Distance between column 2630 mm
Long arm extraction 945 - 1493 mm
Short arm extraction 595 - 800 mm
