TESTMASTER RT130-2 Roller brake tester for check-in, repair and maintenance, testing equipment, general inspection

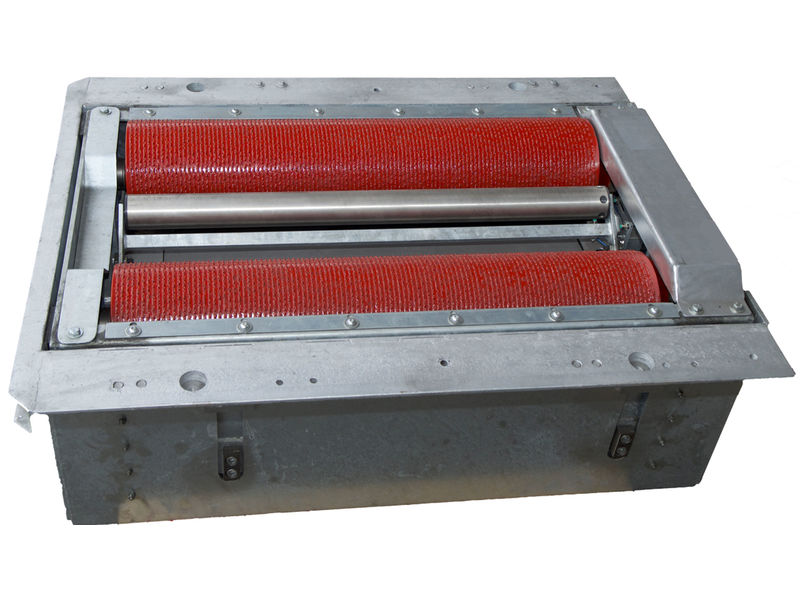

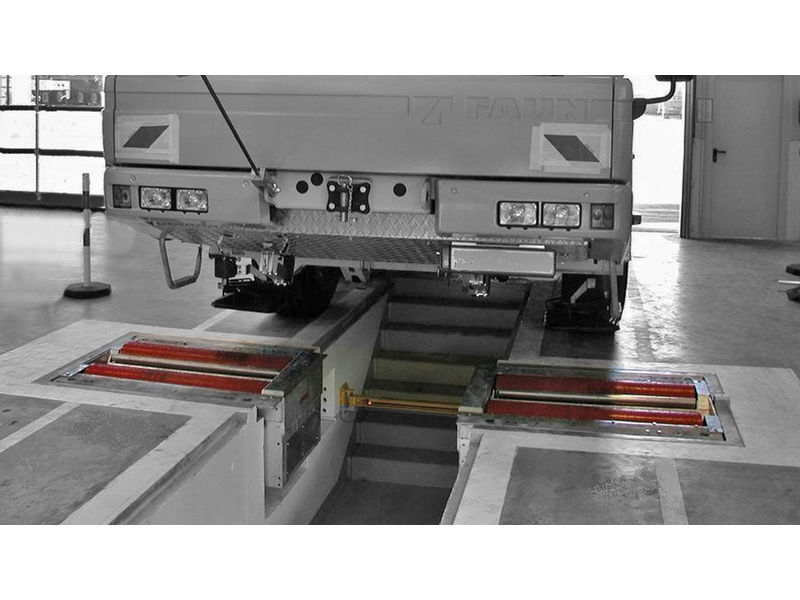

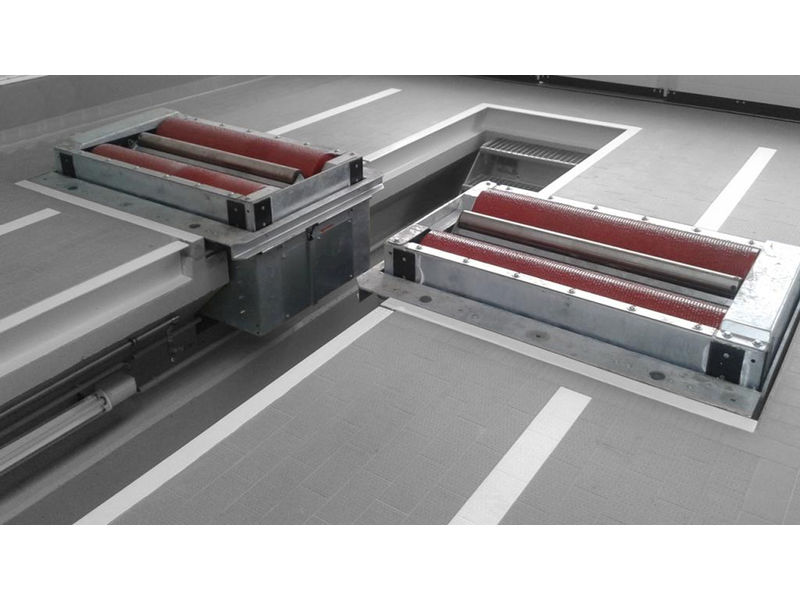

- 2 galvanized roller sets (split version) for suspended installation (mounting frame required for option weighing cells or for retrofit weighing cells)

- Motors with planetary gear units, enormous braking power

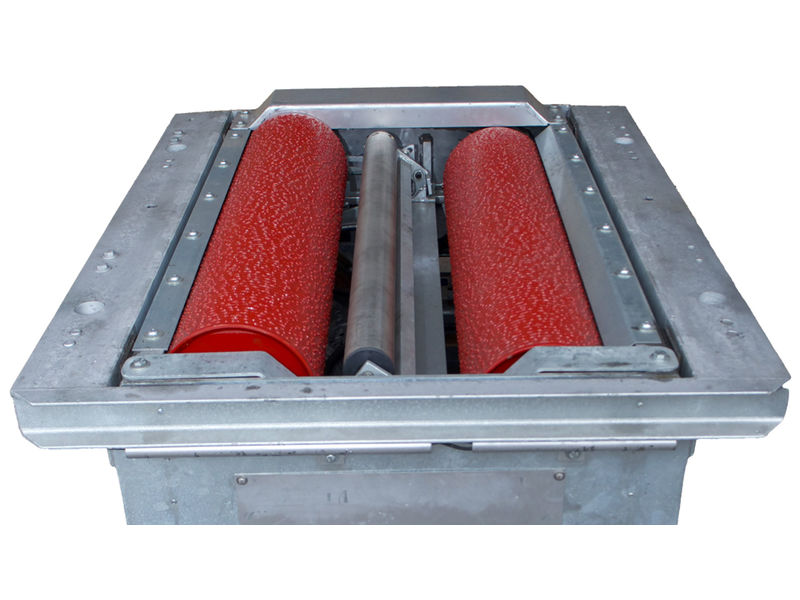

- 205 mm rollers with welded profile surface

- Roller length 1.000 mm, standard drive on height 40 mm over the drive off side

- Wear resistant and modern electronic strain gauge measuring system

- 50 mm rollers in stainless steel

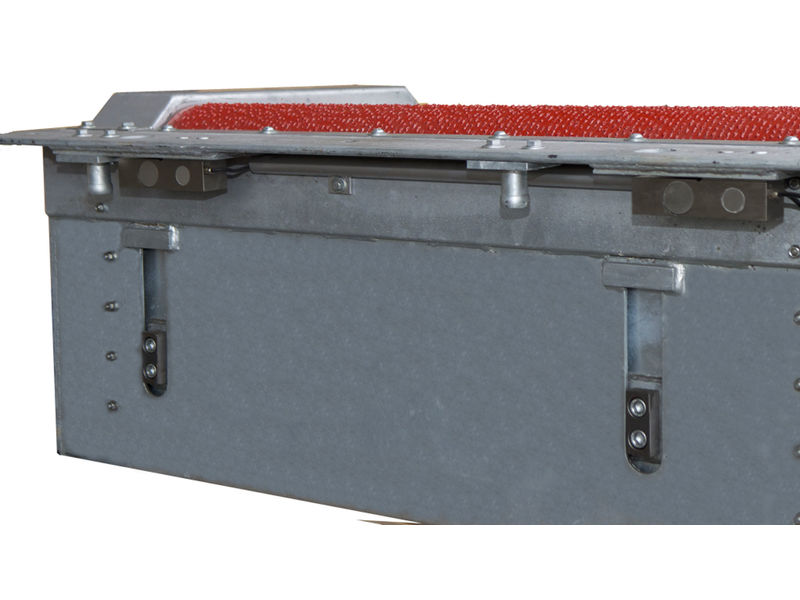

- Prepared for weighing device

- Modular system , all roller sets can be extended with options

- Compact electric / switchbox, prepared for upgrade

- Drive-over axle load 13 to

- Brake force 32 kN

- Equipped as standard with drive-off system

- Manual / Automatic mode

- Delayed switch on, start-up monitoring

- Testing program for electronic parking brakes

- Lockable main switch

- Optionally with large easily read analogue display or with PC-connection kit and PC software


Drive over load13,000 kg
Brake force32 kN
Testing speed2.6 km/h
Drive power of motors2 x 7.5 kW
Roller diameter205 mm
Track width1,000 mm
Test loadat 50% braking 12,0 to
Fuse3 x 32 A inert
Power supply3 x 400 V, N, PE 50 Hz
Dimensions display (W x H x D)810 x 670 x 70 mm
Dimensions roller set (W x L x H)1,220 x 1,045 x 554 mm
