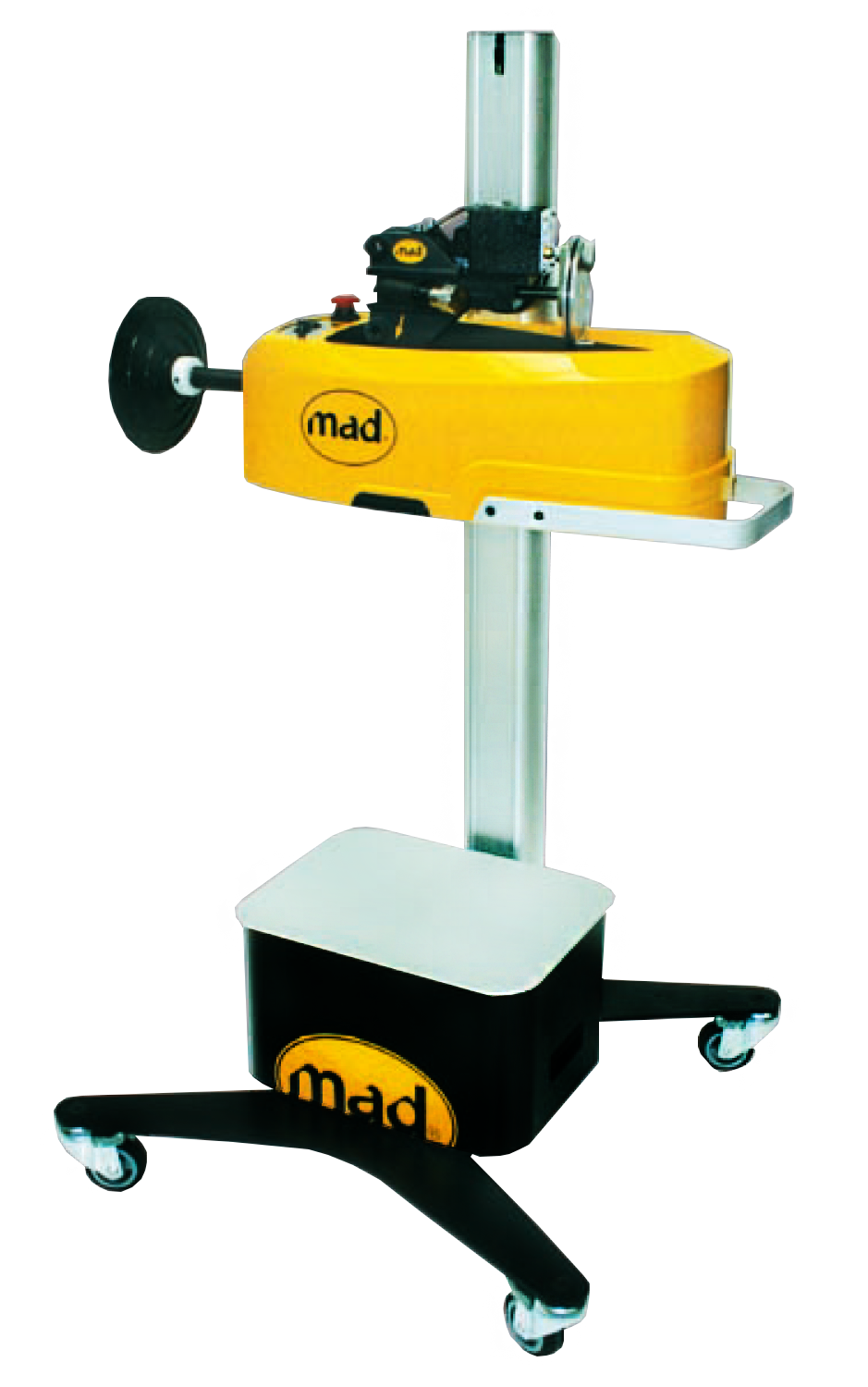

MAD ~~ DA8700-OA350

Technical Data :

- Run out / disc oscillation : < 20 ?m Ra / 0.0008"

- Disc Thinkness variation : < 20 ?m Ra / 0.0008"

- Surface roughness / finish : < 2 ?m Ra / 0.0008"

- Max. brake disc thickness : 39mm - 1.54"

- Max. cutting depth : 0.8 mm - 0.031" per bit

- Incremental cutting scale : 0.05mm / 0.002" per click

- Max. travel : 116.3mm / 4.5"

- Driving rotation speed : 100 rpm

- Voltage : 100-240V AC Freq. 50/60Hz

- Power : 400 Watt / 0.536 HP

- Current : 3.2 Amps

- Weight : 51.5 Kg / 113.7 lb





FEATURES



SPECIFICATION VIEW


Not available.
