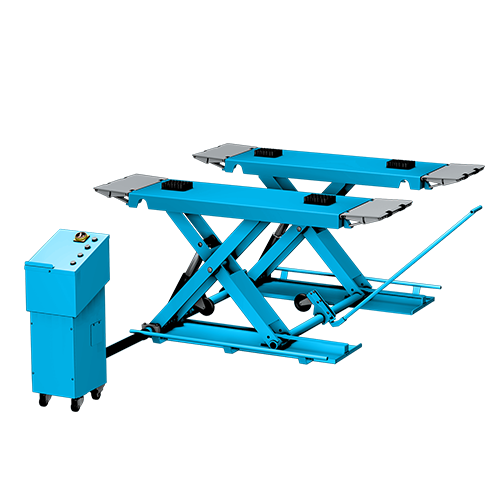

SINO ITALIAN | STD7530E



FEATURES


· Homologated and certified product according to the European Directive EN1493:1998+A1:2008.
· Mobile type, handled by the power pack cart.
· Hydraulic synchronization with assistant of bolster bar to avoid unexpected uneven of platforms.
· Mechanical safeties with air-operated release.
· Automatic stop at the maximum lifting height to protect the lift from over-height lifting.
· Overload valve equipped.
· Manual emergency lowering.
· "Dead man" operation by 24V push button.
· Free maintenance self-lubricating bushings.


SPECIFICATION VIEW


Lifting capacity 3000 kg
Max. Lifting Height 960 mm
Min. Height 100 mm
Platform Length 1450 - 1984 mm
Platform Width 530 mm
Lifting Time 21 sec
Lowering Time  18 sec
Electric Power 220V / 380V
Motor Power 2.2 kW
Weight 550  kg
