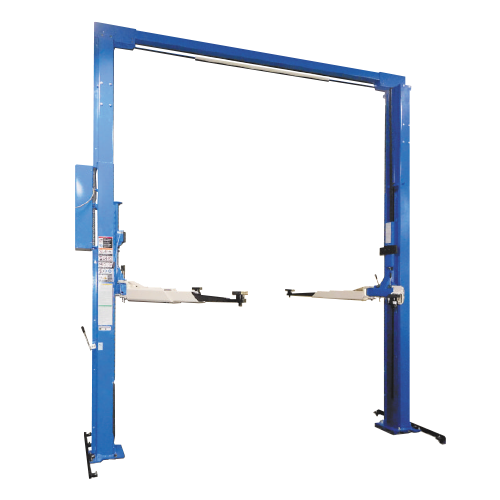

BISHAMON | NSA3500



FEATURES


ROBUST CARRIAGE DESIGN
• Solid steel bearings.
• Lubricated & sealed for extended service life.

AUTOMATIC ARM RESTRAINT
• May be manually released for find adjustment.
• Spring handle assures positive re-engagement.

SUPERIOR COLUMN STRENGTH
• Hot rolled channel made especially for BISHAMON forms the basis of the load bearing structure.

DRIVER POST SAFETY
• Safety hooks feature direct and positive engagement for maximum safety.

ROLLING EASY ARMS
• Rollers mounted in Swing Arms provide easy and smooth setting of lifting point.

LIFT CHAIN
• Chain is used instead of cable for maximum safety and reliability.
• For additional protection a safety rod is fitted.

HYDRAULIC CYLINDER
• An automatic shut off valve is fitted to BISHAMON reliable cylinder for protection against hydraulic failure.


SPECIFICATION VIEW


Lifting capacity 3500 kg
Overall height 3750 mm
Overall width 3666 mm
Overall length 1200 mm
Inside columns 2942 mm
Max height of pad 1960 mm
Min height of pad
119 mm
Lifting time to max height 59 sec.
