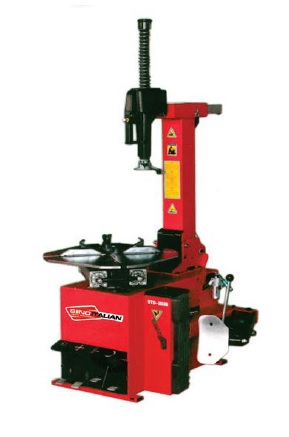

SINO ITALIAN - STD203GT

Technical Data :

- Rim clamping : 10" - 24"

- Max. wheel diameter : 1,000 mm (39")

- Max. wheel width : 350 mm (15")

- Bead-breaker cylinder force : 2,500 kg [ at 10 bar ]

- Operating pressure : 10 Bar (140 psi)

- Power supply : 220V / 380 V

- Motor power : 0.8kw/1.1kw

- Max. spindle torque : 1,200 Nm

- Max. inflating pressure : 3.5 bar (50 psi)

- Packing dimension : mm 1080 (L)x920 (W)x1070 (H)

- Gross weight : 279 kg

- Packing dimension with help and press : mm 1130 (L) x 1380 (W) x 1860 (H)

- Gross weight with help and press : 405 kg


FEATURES


Feature :
• Tilting vertical arm with pedal control
• Pneumatic system for lifting/lowering and locking the
• operating arm
• 24" turntable
• Bead breaker with double effect
• Pneumatic cylinder
• Extractable pedal unit

SPECIFICATION VIEW


Not available.
