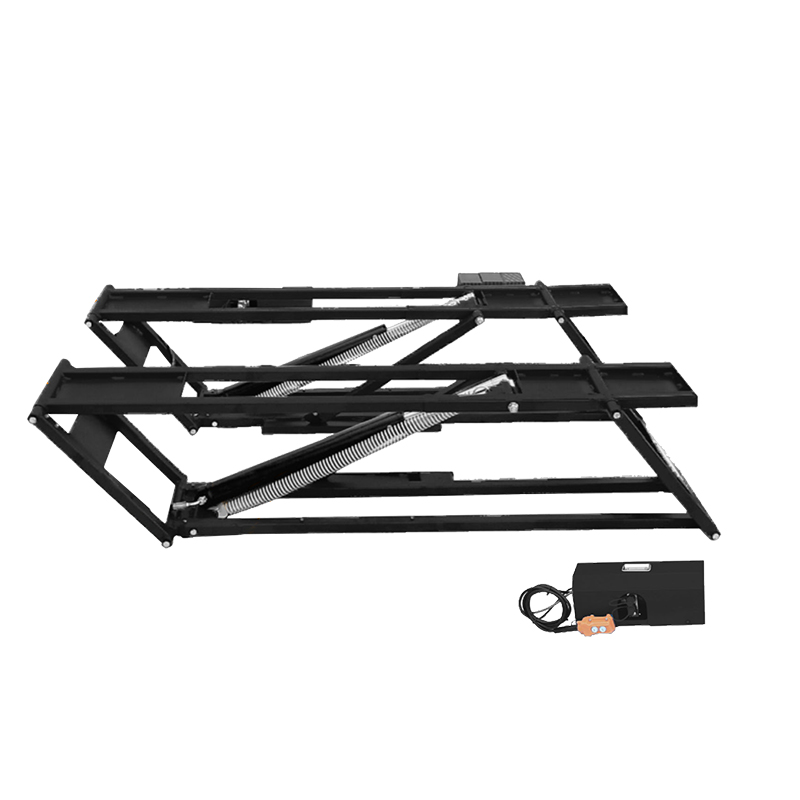

PULI | PL-H25A



FEATURES


•  Open center design.
•  Double security & safety device allow lowering steadily.
•  Hand-held control unit makes remote operation more convenient.

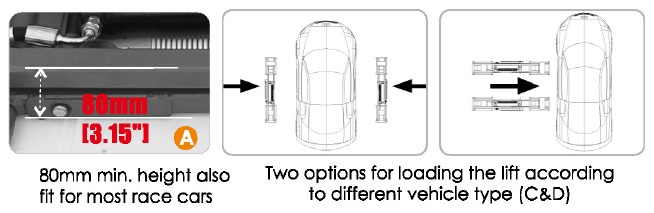

•  Minimum height 80mm fit for various types of race car.
•  Two options for loading the lift according to different vehicle type.

SPECIFICATION VIEW


Lifting Capacity 2.5 Ton
Lifting Height 450 mm (17.7")
Minimum Height 80 mm (3.15")
Platform Height 1500 mm (59")
Platform Length 195 mm (7.7")
Lifting Speed 35 s
Dropping Speed 25 s
Power Supply 12v DC
Motor Power 0.8 kW
